Tie Rod Air Cylinders - The SC/SU Series meets ISO6430.

Tie-Rod Air Cylinders
Click Picture to get dimensions & specifications

Part No.



Cylinder Picture

Bore Size
(mm)

Stroke Length
(mm)

 Mounting Options Features Standard Options
SC

 		 Tie-Rod Cylinder 32
40
50
63
80
100
125
160
200		 Max. 2000mm Bottom Mount, Front Mount, Rear Mount,
Universal		 Double Acting,
Single Acting, Reverse Acting,
Double Shaft		 Buna-N Seal, Cushions Magnetic Piston,
EPDM,
Viton Seals
SU

 		 Enclosed Tie-Rod Cylinder 32
40
50
63
80
100		 Max. 2000mm



 Bottom Mount, Front Mount, Rear Mount,
Universal		 Double Acting,
Single Acting, Reverse Acting,
Double Shaft		 Buna-N Seal, Cushions Magnetic Piston,
EPDM,
Viton Seals

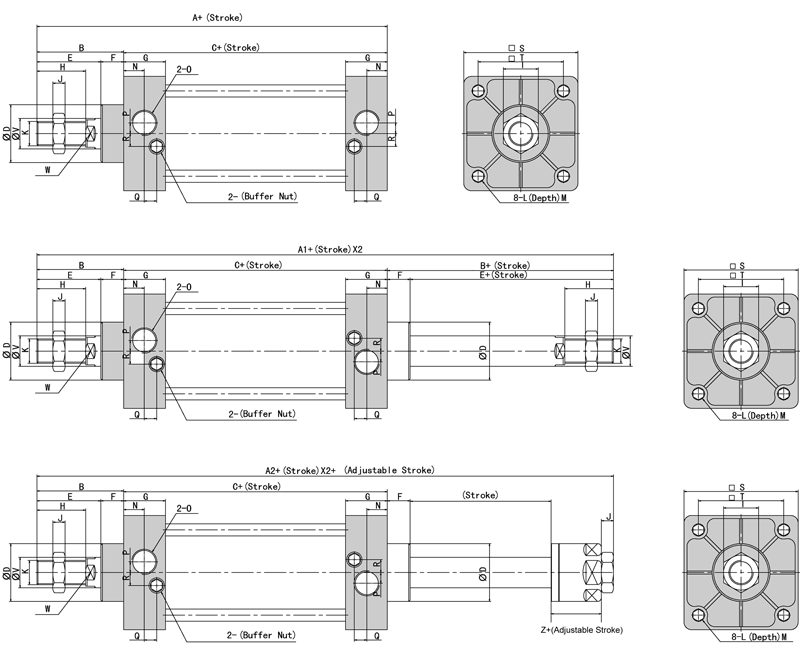

BORE

A

A1

A2

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

V

W

Z

32

140

187

182

47

93

28

32

15

27.5

22

17

6

M10X1.25

M6X1

9.5

13.5

1/8

3.5

7.5

7

45

33

12

12

21

40

142

191

185

48

93

32

34

15

27.5

24

17

7

M12X1.25

M6X1

9.5

13.5

1/4

6

8.2

9

50

37

16

14

21

50

150

207

196

57

93

38

42

15

27.5

32

23

8

M16X1.25

M6X1

9.5

13.5

1/4

8.5

8.2

9

62

47

20

17

23

63

153

210

199

57

96

38

42

15

27.5

32

23

8

M16X1.25

M8X1.25

9.5

13.5

3/8

7

8.2

8.5

75

56

20

17

23

80

183

258

243

75

108

47

54

21

33

40

26

10

M20X1.25

M10X1.5

11.5

16.5

3/8

10

9.5

14

94

70

25

22

29

100

189

264

249

75

114

47

54

21

33

40

26

10

M20X1.25

M10X1.5

11.5

16.5

1/2

11

9.5

14

112

84

25

22

29

125

226

/

/

104

122

55

70

34

33

54

40

10

M27X1.25

M12X1.75

15.5

16.5

1/2

/

/

/

140

110

32

27

/

160

291

/

/

123

168

62

91

32

50

72

55

18

M36X1.25

M16X2

17.5

25

1/2

/

/

/

180

140

40

36

/

200

347

/

/

167

180

80

112

55

50

72

55

18

M36X1.25

M16X2

17.5

25

3/4

/

/

/

220

175

40

36

/

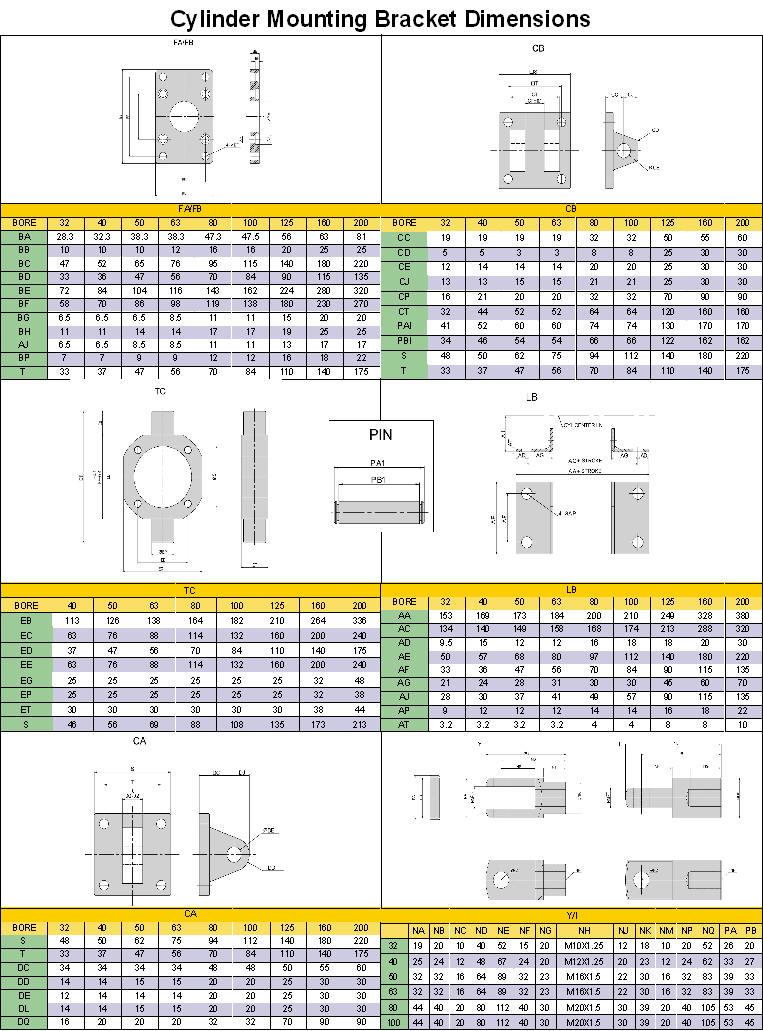

Mounting Hardware   FRONT/REAR FLANGE CLEVIS BRACKET with PIN CLEVIS BRACKET with PIN SWING
BRACKET		 ROD CLEVIS with PIN ROD CLEVIS with PIN

MODEL   FA/FB CA CB TCM I Y



Reed Switches Hall Effect Position Sensor

TIE-ROD AIR CYLINDER & MOUNTING HARDWARE  LIST PRICE
To Order: Specify  Style, Bore Size, Stroke Length, Mounting Options, Magnet
