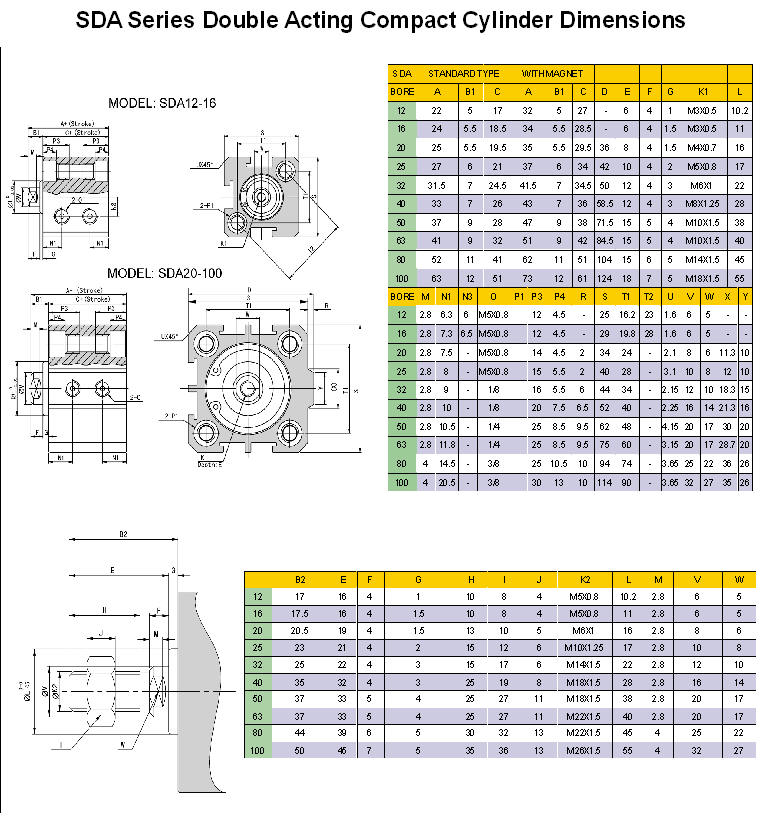

Compact Air Cylinder Dimensions

Click Picture to get dimensions & specifications
Order Numbering System 1 2 3 4 5
Model

Bore Size
(mm)

Stroke Length
(mm)

 Mounting Hardware Magnetic Piston




SSA = Single Acting

SDA = Double Acting

 12
16
20
25
32
40
50
63
80
100		 5 to 150

FA: Front/Back Flange
CA: CLEVIS BRACKET
CB: CLEVIS BRACKET with PIN
I: ROD CLEVIS with PIN
Y: ROD CLEVIS with PIN
(See below for picture)



Blank: No Magnet
S: Magnetic Piston

Mounting Hardware   FRONT/REAR FLANGE Mount CLEVIS BRACKET with PIN CLEVIS BRACKET with PIN SWING
BRACKET
Part No.   FA CA CB TCM


Reed Switches   Hall Effect Position Sensor

COMPACT AIR CYLINDER & MOUNTING HARDWARE  LIST PRICE
To Order: Specify  Style, Bore Size, Stroke Length, Options
