Part No.

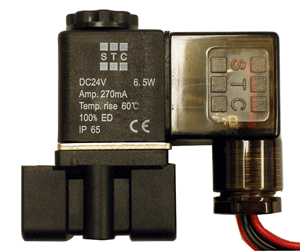

Valve Picture

Port Size
(NPT)

Voltage  Options

Electrical Entry Options

Port No/ Position/Solenoid

Cv
Flow Rate

Response Time

Power Consumption


1/8 NPT

1=12VDC
2=24VDC

2A=24VAC
3=110VAC
4=220VAC
(50/60Hz)

G=Grommet

D= DIN (with LED indicator)

2/2/1
Direct Acting
Normally closed
Two Way Valve

0.23
22 SCFM @100 PSI

< 20 ms

6.5W  for 150 PSI

1/4 NPT

2P Series Valve Specifications

Port & Mounting

Body Ported

Action & Motion

Direct Acting, Normally Closed, Two Position, 2 to 3 Way

Operating Pressure

Working Medium

air, inert gas & liquid

150 PSI

Operating Temperature

 (-5 to 80 Deg. C)  with non-freezing medium

Coil Insulation & Protection Class

Coil Duty Cycle

100% ED

Electrical Connection

Body Material

Engineered Plastic

Seal Material

NBR (Buna N)

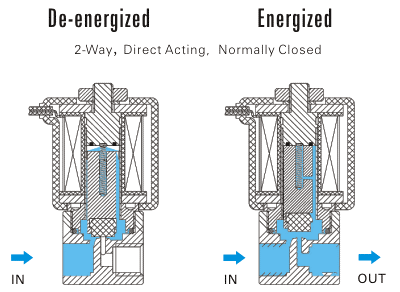

2P Series Valves are DIRECT ACTING solenoid valves and do not require a minimum operating differential pressure. As shown below when the coil is energized (right diagram), it lifts the solenoid plunger, which normally rests on the valve seat and lifts it to open the main valve orifice. When the coil is de-energized (right diagram), the spring force the plunger return to the valve seat to close the valve orifice.

For DIN Coil

To connect DIN coil:
1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil.
2. From the screw opening, use the screw to push the terminal block out of the plastic housing.
3. Note the 1, 2 and ground markings on underside of DIN enclosure.
4. For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
5. For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if required connect ground to ground wire.

For Grommet Coil

To connect Grommet coil:
1.  For DC Coil, connect one of the two wires to Positive, and the other wire to Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the other wire to neutral wire.
