Air & Electric Actuated Valves / Angle Seat Valves

STC's high performance line of air & electric actuated valves and angle-seat valves offer a wide range of capabilities to suit your unique operating conditions. Valve bodies are made from Stainless Steel to stand up to harsh conditions. We also offer accessories, including position indicators, explosion-proof options, namur valves, proportional control actuators, contact signal actuators, and potentiometer actuators.

STC Actuated Valves Selection Guide (Click on a picture to get details)
Air Actuated Ball Valves	Namur Solenoid Valves	Proximity Switches & Position Indicators	Electric Actuated Valves	Electric Actuators	Air Actuated Angle Seat Valves

Air Actuated Valves

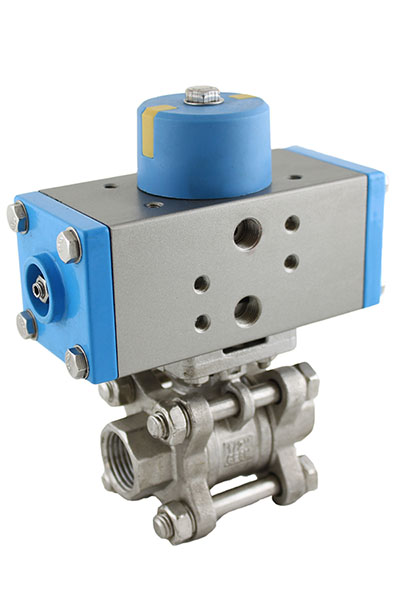

Model	Single Acting Air Actuated Ball Valve		Double Acting Air Actuated Ball Valve		Single Acting Air Actuated Angle Seat Valve (Normally Closed)		Double Acting Air Actuated Angle Seat Valve (Fail Closed)
Downloads	KS-KD.PDF		KS-KD.PDF		2KS-2KD.PDF		2KS-2KD.PDF
Material	316 Stainless Steel		316 Stainless Steel		316 Stainless Steel		316 Stainless Steel
Port Size NPT	Part No.	List Price	Part No.	List Price	Part No.	List Price	Part No.	List Price
1/4"	KS 1/4	$227.43	KD 1/4	$197.19
3/8"	KS 3/8	$227.43	KD 3/8	$197.19	2KS-3/8	$186.24	2KD-3/8	$186.24
1/2"	KS 1/2	$227.43	KD 1/2	$197.19	2KS-1/2	$201.79	2KD-1/2	$201.79
3/4"	KS 3/4	$239.53	KD 3/4	$203.23	2KS-3/4	$206.92	2KD-3/4	$206.92
1"	KS 1	$275.81	KD 1	$251.62	2KS-1	$254.53	2KD-1	$254.53
1 1/4"	KS 1 1/4	$370.87	KD 1 1/4	$287.92	2KS-1 1/4	$362.13	2KD-1 1/4	$362.13
1 1/2"	KS 1 1/2	$481.48	KD 1 1/2	$372.59	2KS-1 1/2	$382.76	2KD-1 1/2	$382.76
2"	KS 2	$637.53	KD 2	$445.18	2KS-2	$527.68	2KD-2	$527.68
2 1/2"	KS 2 1/2	$1,014.90	KD 2 1/2	$979.76	2KS-2 1/2	$637.53	2KD-2 1/2	$637.53
3"	KS 3	$1,207.30	KD 3	$1,086.33	2KS-3	$1,570.33	2KS-3	$1,570.33
4"	KS 4	$2,769.04	KD 4	$2,564.49

STC Namur Solenoid Valves for Controlling Air Actuated Valves & Proximity Switches/Position Indicators
Part No.	Unit Price	Picture	Port Size/ Cable Entry	Voltage	Electrical Connection	Specifications
3V310-1/4B	$45.52		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	G = Grommet D = DIN (with LED)	3 Way Namur Single Solenoid Valve
3V320-1/4B	$67.20		1/4" NPT			3 Way Namur Double Solenoid Valve

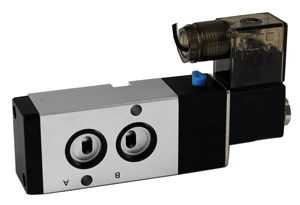

4V310-1/4B	$45.52		1/4" NPT			4 Way Namur Single Solenoid Valve
4V320-1/4B	$67.20		1/4" NPT			4 Way Namur Double Solenoid Valve
3V310-1/4B	$205.98		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	E = Explosion Proof	3 Way Namur Single Solenoid Valve
3V320-1/4B	$303.90		1/4" NPT			3 Way Namur Double Solenoid Valve
4V310-1/4B	$205.98		1/4" NPT			4 Way Namur Single Solenoid Valve
4V320-1/4B	$303.90		1/4" NPT			4 Way Namur Double Solenoid Valve

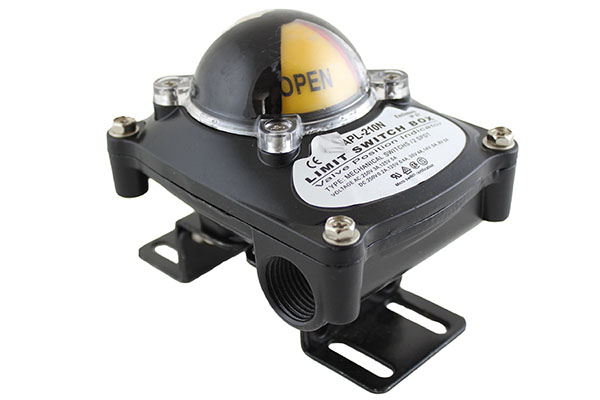

APL-210N	$85.05		2 1/2" NPT	Max. 250VAC or DC	5A @ 8 to 14VDC 4A @ 30VDC 0.4A @ 125VDC 0.2A @ 250VDC 5A @ 125VAC 3A @ 250VAC	Position Indicator for Rotary Actuator IP67 Enclosure 2 SPDT Mechanical Limit Switches Visual Open/Closed Indicator

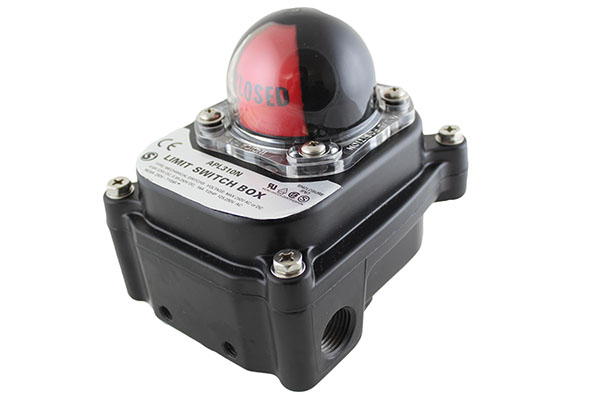

APL-310N	$148.80		2 1/2" NPT	Max. 250VAC or DC	0.6A 125VDC 0.3A 250VDC 16A 125 to 250VAC	Position Indicator for Rotary Actuator 2 SPDT Mechanical Limit Switches Visual Open/Closed Indicator

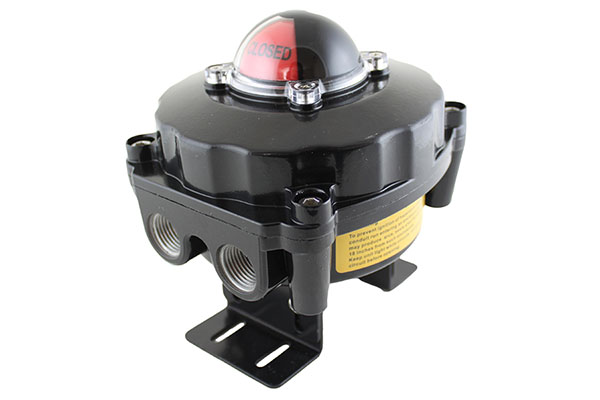

APL-410	$297.59		2 3/4" NPT	Max. 250VAC or DC	0.6A 125VDC 0.3A 250VDC 15A 125 to 250VAC	Explosion Proof Position Indicator for Rotary Actuator Exd II BT6, IP67 Enclosure 2 SPDT Mechanical Limit Switches Visual Open/Closed Indicator

Electric Actuated Valves

Model	2 Way Valve with Actuator with On/Off Indicator		3 Way (L Port) with Actuator with On/Off Indicator
Downloads	E-2015.PDF		E-2015.PDF
Material	316 Stainless Steel		316 Stainless Steel
Port Size NPT	Part No.	List Price	Part No.	List Price
1/4"	E 1/4-V	$553.36	E 1/4-L-V	$568.63
3/8"	E 3/8-V	$553.36	E 3/8-L-V	$568.63
1/2"	E 1/2-V	$553.36	E 1/2-L-V	$568.63
3/4"	E 3/4-V	$564.53	E 3/4-L-V	$589.93
1"	E 1-V	$595.07	E 1-L-V	$629.17
1 1/4"	E 1 1/4-V	$630.21	E 1 1/4-L-V	$718.46
1 1/2"	E 1 1/2-V	$723.36	E 1 1/2-L-V	$869.10

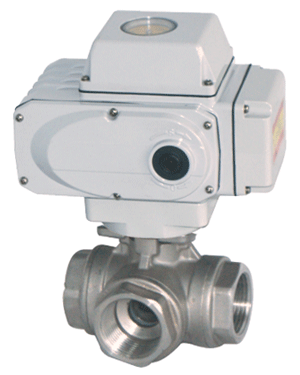

2"	E 2-V	$970.37	E 2-L-V	$1,132.99
2 1/2"	E 2 1/2-V	$1,221.70
3"	E 3-V	$1,776.74

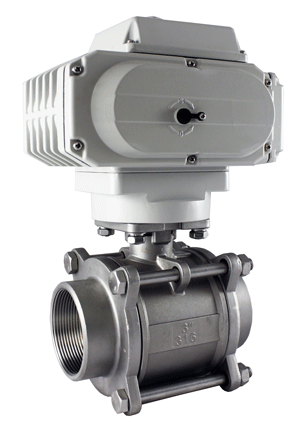

4"	E 4-V	$2,372.95

STC Electric Actuators
Part No.	Unit Price	Picture	Torque	Cycle Time	Weight	Special Function	Control Signal	Ball Valve Size, NPT Diameter (DN)	Butterfly Valve Size Diameter (DN)	Rotation

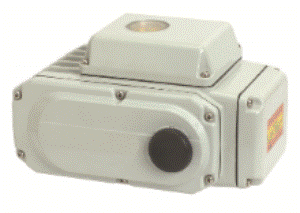

E-05	$493.38		50N * M	20S	2.6Kg	On-Off Light	Light Indicator	1/2" to 1 1/2" (15-40)	1" to 2 1/2" (32-65)	90°
E-10	$690.75		100N * M	30/60S	3.7Kg			2" to 2 1/2" (50-65)	2" to 4" (50-125)
E-20	$937.48		200N * M	30/60S	6.7Kg			2 1/2" to 3" (65-80)	6" to 8" (150-200)
E-40	$986.79		400N * M	30/60S	7.2Kg			3" to 4" (80-100)	8" to 10" (200-250)
E-60	$1233.51		600N * M	45S	7.3Kg			4" (100-125)	10" to 12" (250-300)
E-100	$1578.85		1000N * M	50S	7.3Kg			6" (125-150)	12" to 16" (300-400)
E-200	$1776.27		2000N * M	100S	11.2Kg			6" to 12" (150-300)	18" to 28" (450-700)
E-05S	$542.77		50N * M	20S	2.6Kg	Passive Contact	S = Contact Signal	1/2" to 1 1/2" (15-40)	1" to 2 1/2" (32-65)	90°
E-10S	$740.11		100N * M	30/60S	3.7Kg			2" to 2 1/2" (50-65)	2" to 4" (50-125)
E-20S	$986.79		200N * M	30/60S	6.7Kg			2 1/2" to 3" (65-80)	6" to 8" (150-200)
E-40S	$1036.15		400N * M	30/60S	7.2Kg			3" to 4" (80-100)	8" to 10" (200-250)
E-05R	$641.45		50N * M	20S	2.6Kg	Opening Signal	R = Potentiometer (1-5K)	1/2" to 1 1/2" (15-40)	1" to 2 1/2" (32-65)	90°
E-10R	$838.79		100N * M	30/60S	3.7Kg			2" to 2 1/2" (50-65)	2" to 4" (50-125)
E-20R	$1085.47		200N * M	30/60S	6.7Kg			2 1/2" to 3" (65-80)	6" to 8" (150-200)
E-40R	$1134.83		400N * M	30/60S	7.2Kg			3" to 4" (80-100)	8" to 10" (200-250)

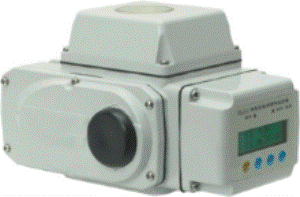

E-05T	$1085.47		50N * M	20S	2.6Kg	Proportional Control	T = 4-20mA	1/2" to 1 1/2" (15-40)	1" to 2 1/2" (32-65)	90°
E-10T	$1282.82		100N * M	30/60S	3.7Kg			2" to 2 1/2" (50-65)	2" to 4" (50-125)
E-20T	$1529.55		200N * M	30/60S	6.7Kg			2 1/2" to 3" (65-80)	6" to 8" (150-200)
E-40T	$1578.85		400N * M	30/60S	7.2Kg			3" to 4" (80-100)	8" to 10" (200-250)
