Process Valves for Air, Water, Liquids, and Steam

STC's high performance line of solenoid process valves offer a wide range of capabilities to suit your unique operating conditions. Several materials are available, including brass, 304 Stainless Steel, 316 Stainless Steel, PTFE (Teflon), and aluminum. ATEX and Explosion-Proof coil options, as well as UL & CSA (cURus) approved coils, are available for many valves to suit your application. We also offer a selection of timer switches and power saving devices. We carry a large inventory of items in our California warehouse that are ready to ship out to you same-day!

STC Process & Manual Valves Selection Guide (Click on a picture to get details)

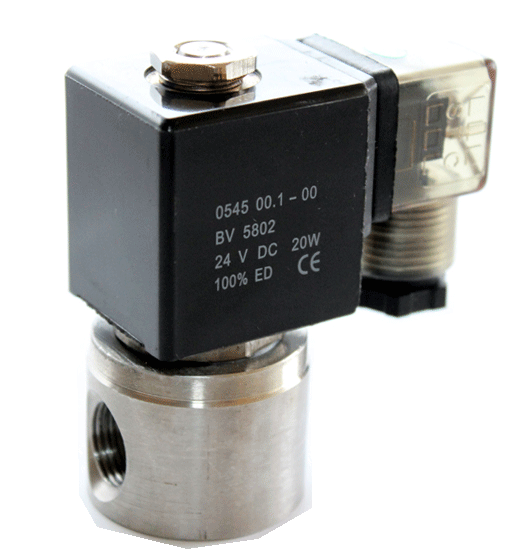

Valve Type	2 Way Direct Acting	3 Way Direct Acting	2 Way Direct Lift Diaphragm	2 Way Pilot Piston	2 Way Direct Lift Piston	Timers & Power Save Devices
Specifications	Vacuum to 115PSI 14 to 122°F For Air, Water, Liquid	Vacuum to 60PSI 14 to 176°F For Air, Water, Liquid	Vacuum to 150PSI 14 to 176°F For Air, Liquid, Oil, Water, Vacuum	8 to 232PSI 23 to 356°F For Air, Liquid, Steam	0 to 120PSI 23 to 356°F For Air, Liquid, Oil, Water, Steam, Vacuum	Timers & Power Save Devices

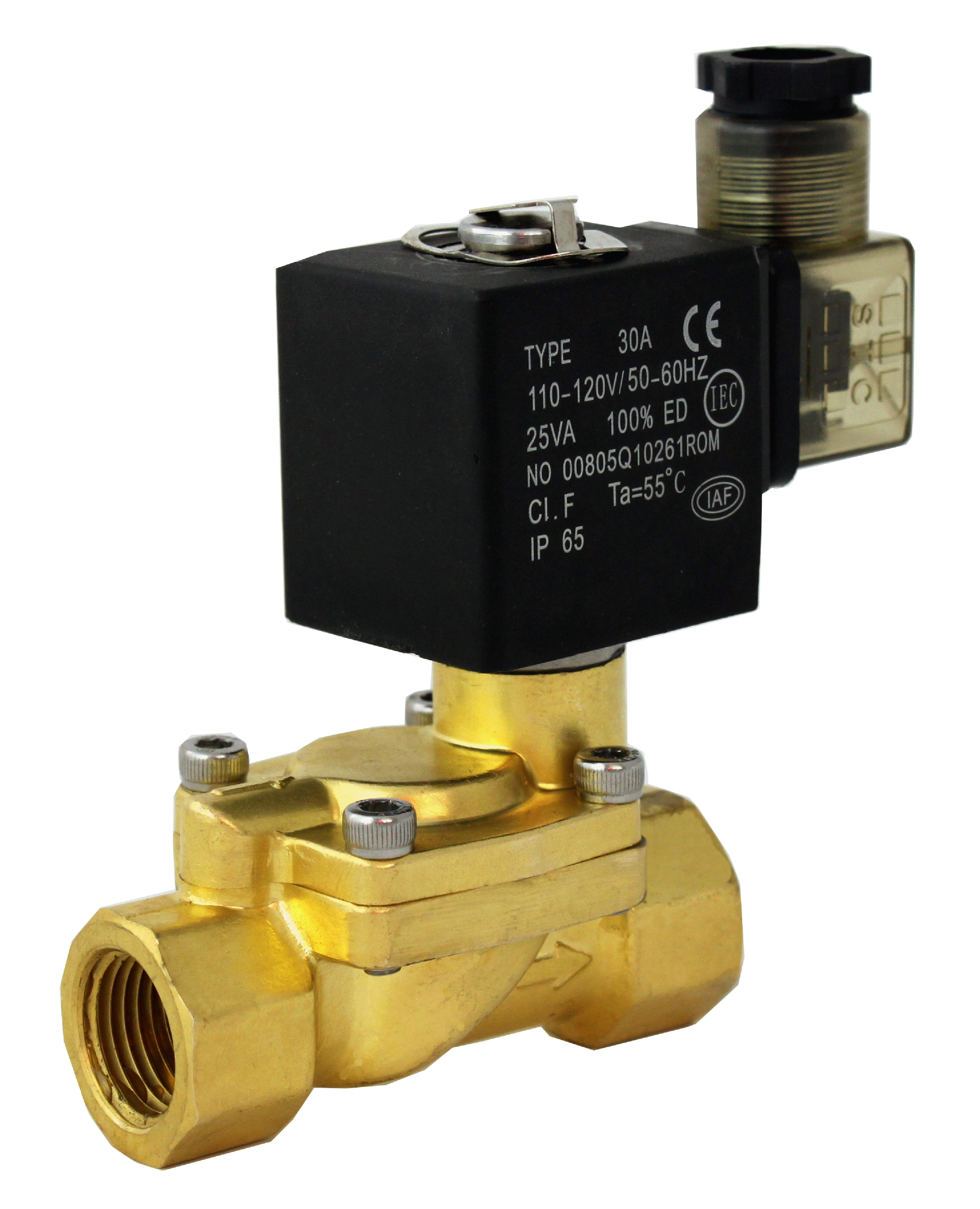

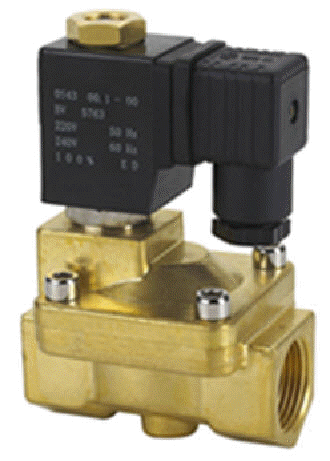

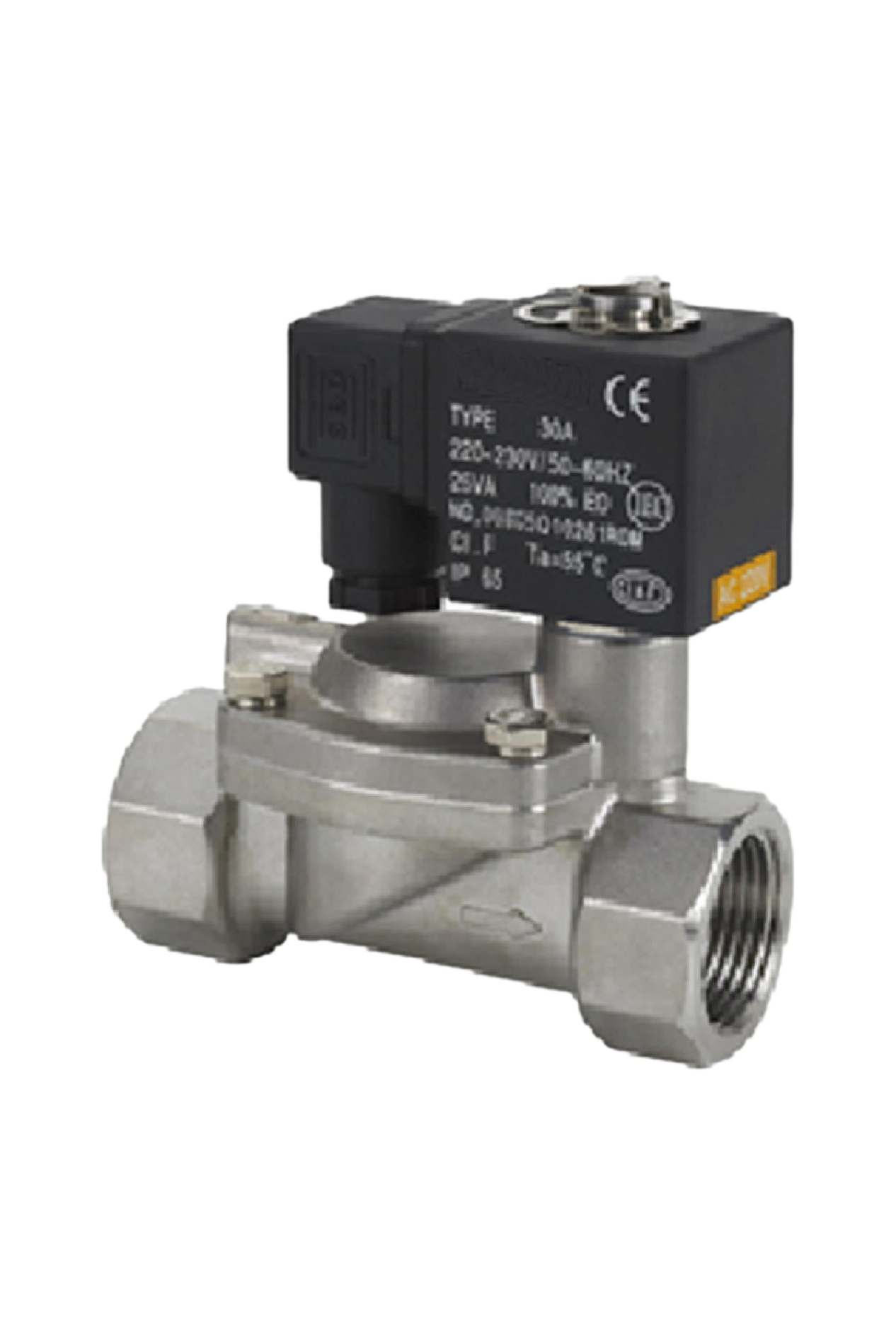

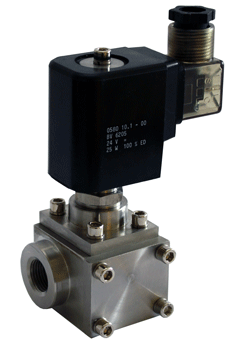

Valve Type	2 Way Pilot Piston	2 Way High Pressure	2 Way Slow Closing Pilot Diaphragm	2 Way Pilot Diaphragm	Coils	Explosion Proof Coils
Specifications	6 to 230PSI -6 to 356°F For Air, Liquid, Steam	87 to 1450PSI -40 to 356°F For Air, Liquid, Water, Steam	4 to 175PSI 14 to 176°F For Air, Liquid, Oil, Water	4.5 to 232PSI 14 to 176°F For Air, Gas, Liquid, Oil, Water	Coils	Explosion Proof Coils

STC Process Valves (Please specify the voltage when ordering.)
Item	Part No.	Unit Price	Picture	Port Size (NPT)	Voltage	Electrical Connection	Cv/Orifice	Services	Features	Valve Symbol/Catalog
1	2P025-1/8	$22.29		1/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	G = Grommet D = DIN (with LED)	Cv = 0.23 Orifice = 2.5mm	Air, Water, Liquid	2 Way Direct Acting Normally Closed 22SCFM @ 100PSI Operating Temp: 14 to 122°F Operating Pressure: Vacuum to 115PSI Engineered Nylon Plastic Body Response Time <20msec Coil Power: 3 to 6.5W	Downloads: 2P025.PDF
2	2P025-1/4	$22.29		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	G = Grommet D = DIN (with LED)	Cv = 0.23 Orifice = 2.5mm	Air, Water, Liquid		Downloads: 2P025.PDF
3	2P025-1/8S	$24.60		1/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	G = Grommet D = DIN (with LED)	Cv = 0.23 Orifice = 2.5mm	Air, Water, Liquid	2 Way Direct Acting Normally Closed 22SCFM @ 100PSI Operating Temp: 14 to 122°F Operating Pressure: Vacuum to 115PSI Engineered Nylon Plastic Body Response Time <20msec Wetted Surfaces: Nylon and Stainless Steel Coil Power: 3 to 6.5W	Downloads: 2P025.PDF
4	2P025-1/4S	$24.60		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	G = Grommet D = DIN (with LED)	Cv = 0.23 Orifice = 2.5mm	Air, Water, Liquid		Downloads: 2P025.PDF
5	2P025-1/8A	$25.76		1/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC E or ATEX = Explosion Proof Coil	G = Grommet D = DIN (with LED)	Cv = 0.23 Orifice = 2.5mm	Air, Water, Liquid	2 Way Direct Acting Normally Closed 20SCFM @ 100PSI Operating Temp: 14 to 176°F Operating Pressure: Vacuum to 115PSI Engineered Acetal Plastic Body Response Time <20msec Wetted Surfaces: Acetal and Stainless Steel Coil Power: 3 to 6.5W	Downloads: 2P025A.PDF
6	2P025-1/4A	$25.76		1/4" NPT		G = Grommet D = DIN (with LED)	Cv = 0.23 Orifice = 2.5mm	Air, Water, Liquid		Downloads: 2P025A.PDF
7	2P050-1/4	$38.60		1/4" Female NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	G = Grommet D = DIN (with LED)	Orifice = 5mm	Air, Water, Liquid	2 Way Direct Acting Normally Closed Operating Pressure: Vacuum to 50PSI Delrin Plastic Body (can be customized to any type of plastic) Wetted Surfaces: Delrin, Stainless Steel, NBR, FKM O-Ring Coil Power: 20W	Downloads: 2P050.PDF
8	2P050-3/8	$38.60		3/8" Female NPT

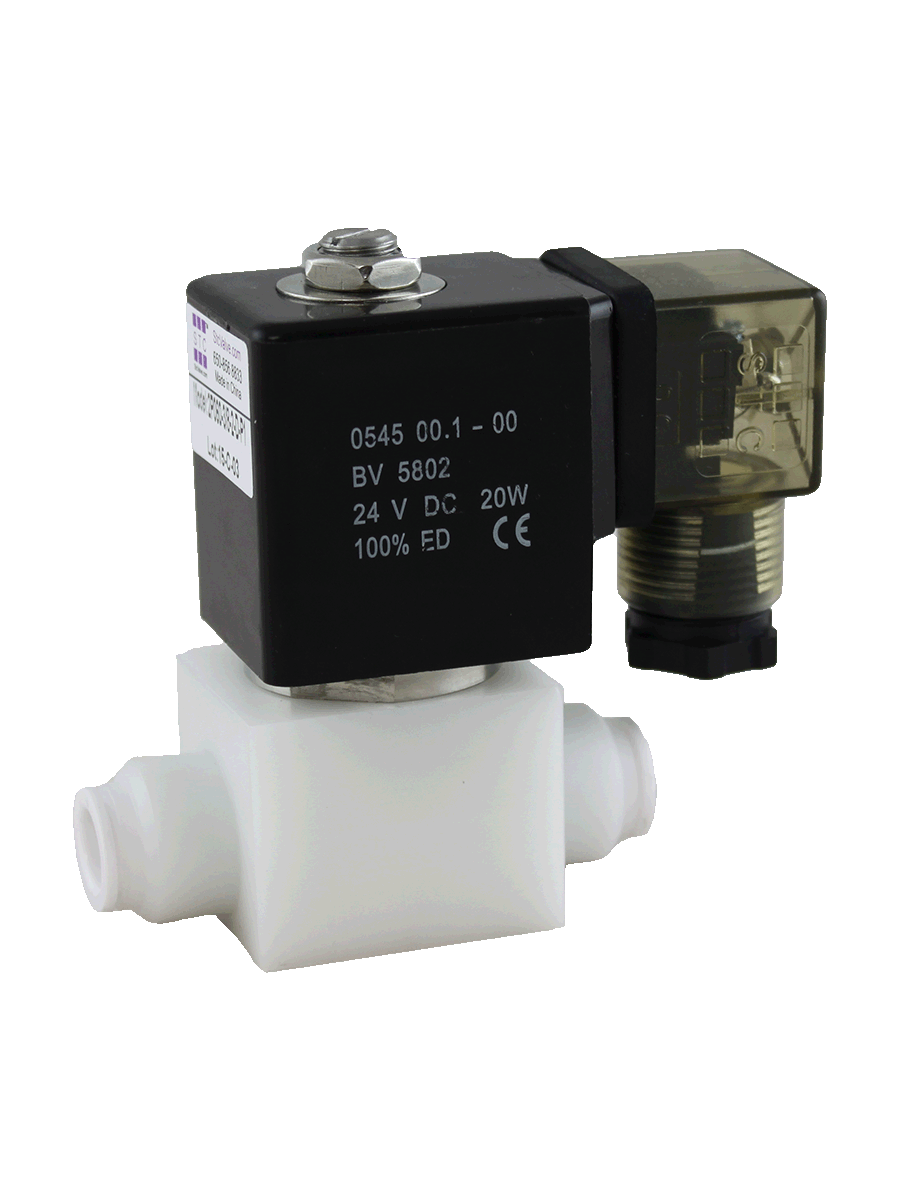

9	2P050-3/8F	$38.60		3/8" Push-In Fitting (pictured)
10	2P050-3/8T	$38.60		3/8" OD Tube
11	2V025-1/8	$22.75		1/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC E or ATEX = Explosion Proof Coil	G = Grommet D = DIN (with LED)	Cv = 0.23 Orifice = 2mm	Air	2 Way Direct Acting Normally Closed 22SCFM @ 100PSI Operating Temp: -4 to 140°F Operating Pressure: Vacuum to 115PSI Anodized Aluminum Body Response Time <20msec Coil Power: 3 to 6.5W	Downloads: 2V025.PDF
12	2V025-1/4	$22.75		1/4" NPT		G = Grommet D = DIN (with LED)	Cv = 0.23 Orifice = 2mm	Air		Downloads: 2V025.PDF

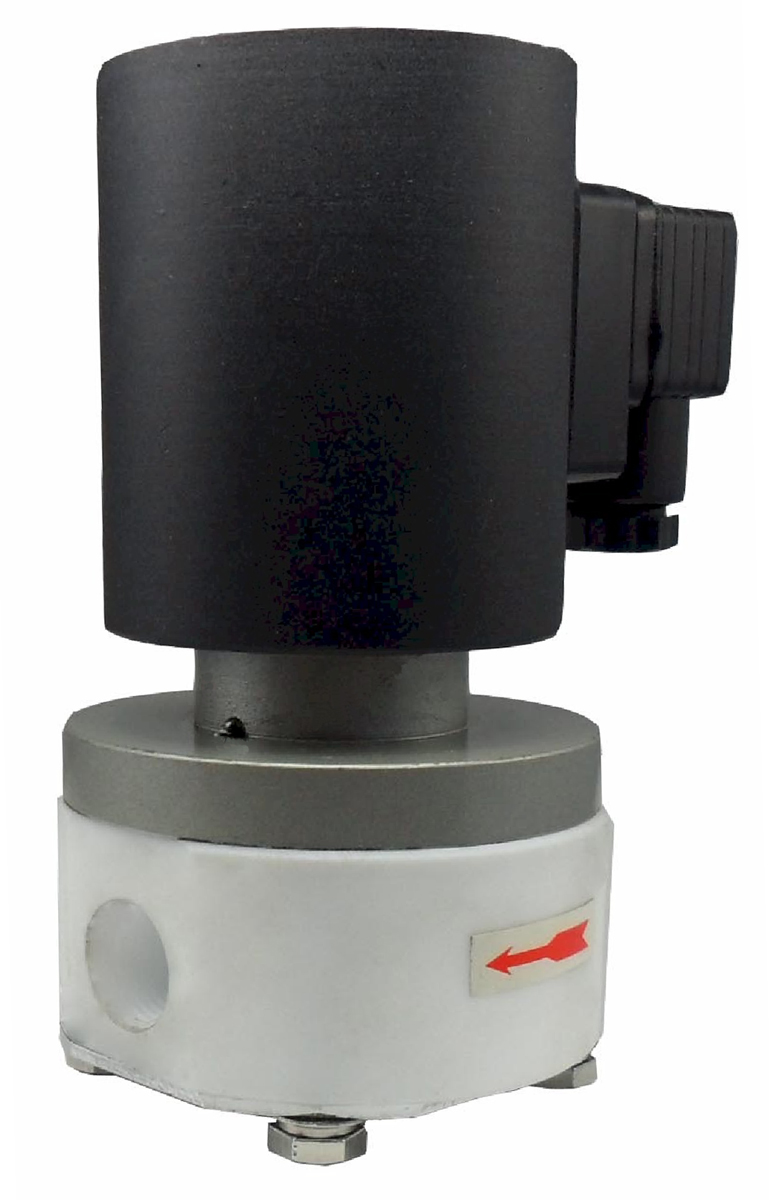

13	2T060-3/8	$309.69		3/8" NPT	2 = 24VDC 3 = 110VAC 4 = 220VAC	D = DIN (with LED)	Cv = 2.8 Orifice = 6mm	Air, Inert Gases, Water, Liquid	2 Way Direct Acting Normally Closed Fluid Temp: -20 to 180°C Operating Pressure: Vacuum to 22PSI Valve Body: PTFE Seals: FKM Wetted Surfaces: PTFE, FKM Compatible Fluid: Corrosive fluid & gas, acid, alkali, etc.	Downloads: 2T060.PDF 3D Model.PDF
14	2T060-1/2	$309.69		1/2" NPT	2 = 24VDC 3 = 110VAC 4 = 220VAC	D = DIN (with LED)	Cv = 2.8 Orifice = 6mm	Air, Inert Gases, Water, Liquid		Downloads: 2T060.PDF 3D Model.PDF
15	3P010-1/8A	$26.90		1/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC E or ATEX = Explosion Proof Coil	G = Grommet D = DIN (with LED)	Cv = 0.05 Orifice = 1mm	Air, Water, Liquid	3 Way Direct Acting Normally Closed 20SCFM @ 100PSI Operating Temp: 14 to 176°F Operating Pressure: Vacuum to 60PSI Engineered Acetal Plastic Body Response Time <20msec Wetted Surfaces: Acetal and Stainless Steel Coil Power: 3 to 6.5W
16	3P010-1/4A	$26.90		1/4" NPT		G = Grommet D = DIN (with LED)	Cv = 0.05 Orifice = 1mm	Air, Water, Liquid
17	2S012-1/8A	$34.34		1/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC E or ATEX = Explosion Proof Coil	G = Grommet D = DIN (with LED)	Cv = 0.05 Orifice = 1.2mm	Air, Liquid, Oil, Water	2 Way Direct Acting Normally Closed Stainless Steel Solenoid Valve Operating Temp: 14 to 176°F Operating Pressure: 0 to 200PSI Seal: NBR Response Time <20msec Coil Power: 3 to 6.5W	Downloads: 2S012-020.PDF
18	2S012-1/4A	$34.34		1/4" NPT			Cv = 0.05 Orifice = 1.2mm
19	2S020-1/8A	$34.34		1/8" NPT			Cv = 0.15 Orifice = 2.0mm		2 Way Direct Acting Normally Closed Stainless Steel Solenoid Valve Operating Temp: 14 to 176°F Operating Pressure: 0 to 150PSI Seal: NBR Response Time <20msec Coil Power: 3 to 6.5W
20	2S020-1/4A	$34.34		1/4" NPT			Cv = 0.15 Orifice = 2.0mm
21	3S012-1/8A	$37.79		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC E or ATEX = Explosion Proof Coil	G = Grommet D = DIN (with LED)	Cv = 0.05 Orifice = 1.2mm	Air, Liquid, Oil, Water	3 Way Universal Direct Acting Normally Closed: Vacuum to 60 PSI Normally Open Vacuum to 150PSI Diverter Valve 1 input to 2 output: Vacuum to 150PSI Stainless Steel Solenoid Valve Temperature: 14 to 176°F (-10 to 80°C) Seal: NBR Response Time <20msec Coil Power: 3 to 6.5W	Downloads: 3S012.PDF
22	3S012-1/4A	$37.79		1/4" NPT		G = Grommet D = DIN (with LED)	Cv = 0.05 Orifice = 1.2mm	Air, Liquid, Oil, Water		Downloads: 3S012.PDF

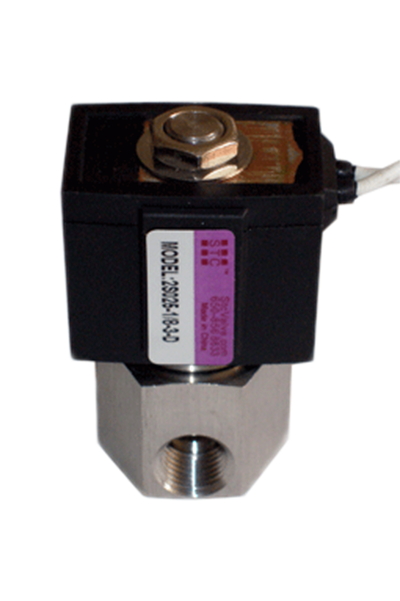

23	2S025-1/8H	$34.34		1/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	G = Grommet	Cv = 0.23 Orifice = 2.5mm	Air, Liquid, Oil, Water	2 Way Direct Acting Normally Closed Stainless Steel Solenoid Valve Temperature: 14 to 176°F (-10 to 80°C) Operating Pressure (110-220AC): 0 to 150PSI Operating Pressure (12-24V): 0 to 120PSI Seal: NBR Response Time <20msec Coil Power: 10 to 14W	Downloads: 2S025H.PDF
24	2S025-1/4H	$34.34		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	G = Grommet	Cv = 0.23 Orifice = 2.5mm	Air, Liquid, Oil, Water		Downloads: 2S025H.PDF
25	2W025-1/4H	$32.26		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	G = Grommet	Cv = 0.23 Orifice = 2.5mm	Air, Liquid, Oil, Water	2 Way Direct Acting Normally Closed Brass Solenoid Valve Temperature: 14 to 176°F (-10 to 80°C) Operating Pressure: 0 to 150PSI Response Time <20msec Coil Power: 10 to 14W
26	2S025-1/4	$37.12		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN (with LED)	Cv = 0.23 Orifice = 2.5mm	Air, Liquid, Oil, Water	2 Way Direct Acting Normally Closed Stainless Steel Valve Body Operating Temp: 14 to 176°F (with NBR Seal), 5 to 248°F (with FKM Seal) Operating Pressure: 2S025: 0 to 200PSI 2S035: 0 to 170PSI 2S040: 0 to 150PSI 2S050: 0 to 80PSI Response Time <20msec Coil Power: 13 to 20W	Downloads: 2S010-050.PDF
27	2S035-1/4	$40.57		1/4" NPT			Cv = 0.5 Orifice = 3.5mm
28	2S040-3/8	$51.50		3/8" NPT			Cv = 0.6 Orifice = 4mm
29	2S050-1/4	$51.50		1/4" NPT			Cv = 1.0 Orifice = 5mm
30	2S050-3/8	$51.50		3/8" NPT			Cv = 1.0 Orifice = 5mm
31	2W025-1/4	$33.26		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN (with LED)	Cv = 0.23 Orifice = 2.5mm	Air, Liquid, Oil, Water	2 Way Direct Acting Normally Closed Brass Solenoid Valve Fluid Temp: -10 to 80°C (with NBR Seal) Fluid Temp: -15 to 120°C (with FKM Seal) Operating Pressure: Vacuum to 150PSI Response Time <20msec Coil Power: 13 to 20W	Downloads: 2W010-040.PDF
32	2W035-1/4	$37.87		1/4" NPT			Cv = 0.5 Orifice = 3.5mm
33	2W040-3/8	$41.32		3/8" NPT			Cv = 0.6 Orifice = 4mm
34	2H012-1/8	$68.04		1/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN (with LED)	Cv = 0.05 Orifice = 1.2mm	Air, Water, Liquid	2 Way Direct Acting Normally Closed Stainless Steel Solenoid Valve Operating Temp: 14 to 176°F (-20 to 85°C) Operating Pressure: 0 to 1000PSI Seal: PTFE Response Time <20msec Coil Power: 14W	Downloads: 2H012.PDF 3D Model.PDF
35	3S020-1/4	$71.38		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN	Cv = 0.23 Orifice = 2mm	Air, Liquid, Oil, Water	3 Way Direct Acting Normally Closed or Open Valve Body: Stainless Steel Seal: FKM Temperature: 5 to 248°F (-15 to 120°C) Operating Pressure (2mm Orifice): 0 to 100PSI Operating Pressure (3.5mm Orifice): 0 to 50PSI Response Time <20msec Coil Power: 13 to 20W	Downloads: 3S020-035.PDF
36	3S035-1/4	$71.38		1/4" NPT		D = DIN	Cv = 0.5 Orifice = 3.5mm	Air, Liquid, Oil, Water		Downloads: 3S020-035.PDF
37	2SO030-1/4	$68.90		1/4" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Orifice = 3mm	Air, Liquid, Oil, Water, Vacuum	2 Way Direct Acting Normally Open Stainless Steel Solenoid Valve Operating Temp (with NBR Seal): 14 to 176°F (-10 to 80°C) Operating Temp (with FKM Seal): 5 to 248°F (-15 to 120°C) Pressure: Vacuum to 90PSI Coil Power: 30W	Downloads: 2SO030-040.PDF
38	2SO040-3/8	$77.19		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 0.6 Orifice = 4mm	Air, Liquid, Oil, Water, Vacuum		Downloads: 2SO030-040.PDF
39	2WO040-3/8	$68.71		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 0.6 Orifice = 4mm	Air, Liquid, Oil, Water, Vacuum	2 Way Direct Acting Normally Open Brass Solenoid Valve Operating Temp (with NBR Seal): 14 to 176°F (-10 to 80°C) Operating Temp (with FKM Seal): 5 to 248°F (-15 to 120°C) Pressure: Vacuum to 90PSI Coil Power: 30W	2WO040.PDF
40	2V130-3/8	$71.14		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC E or ATEX = Explosion Proof Coil	D = DIN (with LED)	Cv = 4.8 Orifice = 13mm	Air, Liquid, Oil, Water	2 Way Pilot Operated Diaphgram Normally Closed Brass Valve Body Operating Temp: 14 to 176°F (with NBR Seal), 5 to 248°F (with FKM Seal) Operating Pressure: 5 to 115PSI Option: 5 to 150PSI Coil Power: 3 to 6.5W	Downloads: 2V130-250.PDF 3D Model.PDF
41	2V130-1/2	$71.14		1/2" NPT			Cv = 4.8 Orifice = 13mm
42	2V250-3/4	$137.18		3/4" NPT			Cv = 12 Orifice = 25mm
43	2V250-1	$137.18		1" NPT			Cv = 12 Orifice = 25mm
44	2S160-3/8	$125.15		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN (with LED)	Cv = 4.8 Orifice = 16mm	Air, Liquid, Oil, Water, Vacuum	2 Way Direct Lift Diaphragm Normally Closed 304 Stainless Steel Solenoid Valve Operating Temp: 14 to 176°F (with NBR Seal), 5 to 248°F (with FKM Seal) Operating Pressure (AC Coil): Vacuum to 150PSI Operating Pressure (DC Coil): Vacuum to 100PSI Coil Power: DC: 20W (3/8" to 1"), 30W (1 1/4" & larger) AC: 28VA (@50Hz)	Downloads: 2S160-500.PDF
45	2S160-1/2	$125.15		1/2" NPT			Cv = 4.8 Orifice = 16mm
46	2S200-3/4	$141.93		3/4" NPT			Cv = 7.6 Orifice = 20mm
47	2S250-1	$159.52		1" NPT			Cv = 12 Orifice = 25mm
48	2S350-1 1/4	$290.00		1 1/4" NPT			Cv = 24 Orifice = 35mm

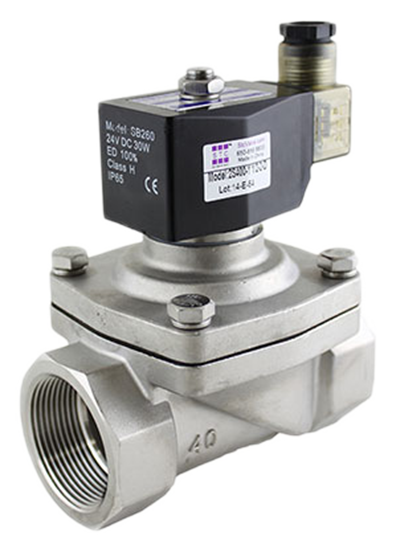

49	2S400-1 1/2	$309.39		1 1/2" NPT			Cv = 29 Orifice = 40mm
50	2S500-2	$483.36		2" NPT			Cv = 48 Orifice = 50mm
51	2W160-3/8	$72.36		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN (with LED)	Cv = 4.8 Orifice = 16mm	Air, Liquid, Oil, Water, Vacuum	2 Way Direct Lift Diaphragm Normally Closed Brass Solenoid Valve Operating Temp: 14 to 176°F (with NBR Seal), 5 to 248°F (with FKM Seal) Operating Pressure (AC Coil): Vacuum to 150PSI Operating Pressure (DC Coil): Vacuum to 100PSI Coil Power: DC: 20W (3/8" to 1"), 30W (1 1/4" & larger) AC: 28VA (@50Hz)	Downloads: 2W160-500.PDF
52	2W160-1/2	$77.54		1/2" NPT			Cv = 4.8 Orifice = 16mm
53	2W200-3/4	$83.87		3/4" NPT			Cv = 7.6 Orifice = 20mm
54	2W250-1	$106.72		1" NPT			Cv = 12 Orifice = 25mm
55	2W350-1 1/4	$204.79		1 1/4" NPT			Cv = 24 Orifice = 35mm
56	2W400-1 1/2	$235.67		1 1/2" NPT			Cv = 29 Orifice = 40mm
57	2W500-2	$330.55		2" NPT			Cv = 48 Orifice = 50mm
58	2SO160-3/8	$143.96		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN (with LED)	Cv = 4.8 Orifice = 16mm	Air, Liquid, Oil, Water, Vacuum	2 Way Normally Open Direct Lift Diaphragm 304 Stainless Steel Solenoid Valve Operating Temp: 14 to 176°F (with NBR Seal), 5 to 248°F (with FKM Seal) Operating Pressure: Vacuum to 90PSI Option: Vacuum to 150PSI Coil Power: 30 to 38W	Downloads: 2SO160-500.PDF
59	2SO160-1/2	$157.07		1/2" NPT			Cv = 4.8 Orifice = 16mm
60	2SO200-3/4	$183.29		3/4" NPT			Cv = 7.6 Orifice = 20mm

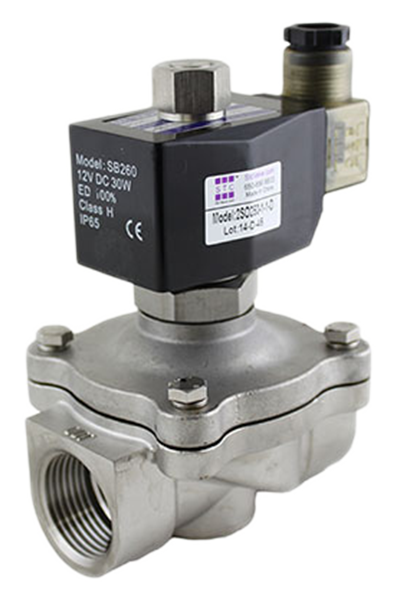

61	2SO250-1	$287.92		1" NPT			Cv = 12 Orifice = 25mm
62	2SO350-1 1/4	$343.33		1 1/4" NPT			Cv = 24 Orifice = 35mm
63	2SO400-1 1/2	$399.21		1 1/2" NPT			Cv = 29 Orifice = 40mm
64	2SO500-2	$544.38		2" NPT			Cv = 48 Orifice = 50mm
65	2WO160-3/8	$110.79		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN (with LED)	Cv = 4.8 Orifice = 16mm	Air, Liquid, Oil, Water, Vacuum	2 Way Direct Lift Diaphragm Normally Open Brass Solenoid Valve Operating Temp: 14 to 176°F (with NBR Seal), 5 to 248°F (with FKM Seal) Operating Pressure: Vacuum to 90PSI Option: Vacuum to 150PSI Coil Power: 30 to 38W	Downloads: 2WO160-500.PDF
66	2WO160-1/2	$110.79		1/2" NPT			Cv = 4.8 Orifice = 16mm
67	2WO200-3/4	$120.81		3/4" NPT			Cv = 7.6 Orifice = 20mm
68	2WO250-1	$140.99		1" NPT			Cv = 12 Orifice = 25mm
69	2WO350-1 1/4	$247.99		1 1/4" NPT			Cv = 24 Orifice = 35mm
70	2WO400-1 1/2	$296.76		1 1/2" NPT			Cv = 29 Orifice = 40mm
71	2WO500-2	$401.49		2" NPT			Cv = 48 Orifice = 50mm
72	2L170-1/2	$157.10		1/2" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 4.8 Orifice = 17mm	Air, Liquid, Steam	2 Way Pilot Piston Normally Closed Brass Solenoid Valve Operating Temp: 23 to 356°F (-5 to 180°C) Operating Pressure: 7 to 232PSI Seal: PTFE Vacuum Reverse Flow Direction Installation: Valve Vertical, Horizontal Flow Coil Power: 30 to 40W	Downloads: 2L170-300.PDF
73	2L170-3/4	$165.84		3/4" NPT			Cv = 4.8 Orifice = 17mm
74	2L200-1	$193.26		1" NPT			Cv = 12 Orifice = 20mm
75	2L300-1 1/2	$343.88		1 1/2" NPT			Cv = 20 Orifice = 30mm
76	2LS150-1/2	$183.29		1/2" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 4.8 Orifice = 15mm	Air, Liquid, Oil, Water, Steam, Vacuum	2 Way Semi-Direct Lift Piston Normally Closed Body: 304 Stainless Steel Seal: PTFE Media Temp: 23 to 356°F, Ambient Temp: 23 to 110°F Operating Pressure: 0 to 145PSI (AC Coil), 5 to 72PSI (DC Coil) Coil: Class H, IP65 Coil Power: 30W (DC, 1/2" & 3/4"), 35W (DC, 1" & Larger), 28VA (AC)	Downloads: 2LS150-500.PDF
77	2LS200-3/4	$226.28		3/4" NPT			Cv = 7.6 Orifice = 20mm
78	2LS250-1	$282.79		1" NPT			Cv = 12 Orifice = 25mm
79	2LS320-1 1/4	$371.18		1 1/4" NPT			Cv = 24 Orifice = 35mm
80	2LS400-1 1/2	$410.94		1 1/2" NPT			Cv = 30 Orifice = 40mm
81	2LS500-2	$593.51		2" NPT			Cv = 48 Orifice = 50mm
82	2P160-1/2	$53.77		1/2" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 4.8 Orifice = 16mm	Air, Liquid, Oil, Steam	2 Way Direct Lift Diaphragm Normally Closed Engineered Nylon Solenoid Valve Operating Temp: 32 to 122°F (0 to 50°C) Operating Pressure: Vacuum to 90PSI Seal: NBR Vacuum Reverse Flow Direction Coil Power: 30W	Downloads: 2P160-250.PDF
83	2P200-3/4	$63.96		3/4" NPT			Cv = 7.6 Orifice = 20mm
84	2P250-1	$87.72		1" NPT			Cv = 12 Orifice = 25mm

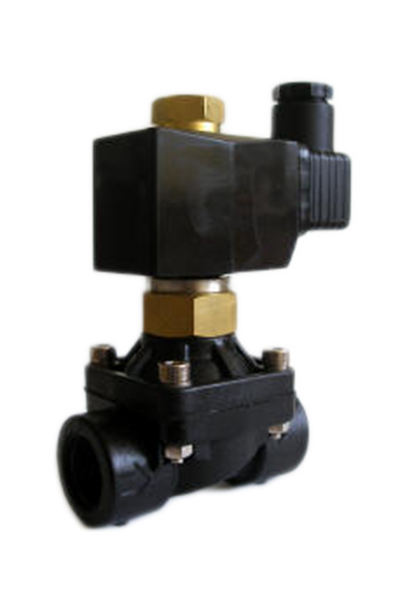

85	2PO160-1/2	$77.96		1/2" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 4.8 Orifice = 16mm	Air, Liquid, Oil, Water, Vacuum	2 Way Direct Lift Diaphragm Normally Open Engineered Nylon Solenoid Valve Operating Temp: 32 to 122°F (0 to 50°C) Operating Pressure: Vacuum to 90PSI Seal: NBR Coil Power: 30W	Downloads: 2PO160-250.PDF
86	2PO200-3/4	$88.16		3/4" NPT			Cv = 7.6 Orifice = 20mm
87	2PO250-1	$111.91		1" NPT			Cv = 12 Orifice = 25mm
88	2MS120-3/8	$167.57		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN	Cv = 4.5 Orifice = 12mm	Air, Liquid, Steam NOTE: STC Recommends Use With High Temp* Applications	2 Way Pilot Piston Normally Closed Body: 304 Stainless Steel Seal: PTFE Operating Temp: -6 to 356°F (-20 to 180°C) Operating Pressure (Standard): 6 to 230PSI Options: Medium: 6 to 580PSI (DC), Medium: 6 to 725PSI (AC), High: 87 to 1160PSI Coil: Class H, IP65, CE Coil Power: 13 to 20W	Downloads: 2MS120-500.PDF
89	2MS150-1/2	$167.57		1/2" NPT			Cv = 4.5 Orifice = 15mm
90	2MS200-3/4	$200.74		3/4" NPT			Cv = 7.6 Orifice = 20mm
91	2MS250-1	$256.61		1" NPT			Cv = 12 Orifice = 25mm
92	2MS320-1 1/4	$363.09		1 1/4" NPT			Cv = 22 Orifice = 32mm
93	2MS400-1 1/2	$381.41		1 1/2" NPT			Cv = 30 Orifice = 40mm
94	2MS500-2	$591.77		2" NPT			Cv = 48 Orifice = 50mm
95	2MSO120-3/8	$205.11		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 4.5 Orifice = 12mm	Air, Liquid, Steam NOTE: STC Recommends Use With High Temp* Applications	2 Way Pilot Piston Normally Open Body: 304 Stainless Steel Seal: PTFE Operating Temp: -6 to 356°F (-20 to 180°C) Operating Pressure: 6 to 145PSI Coil: Class H, IP65, CE Coil Power: 30W	Downloads: 2MSO120-500.PDF
96	2MSO150-1/2	$205.11		1/2" NPT			Cv = 4.5 Orifice = 15mm
97	2MSO200-3/4	$238.28		3/4" NPT			Cv = 7.6 Orifice = 20mm
98	2MSO250-1	$294.14		1" NPT			Cv = 12 Orifice = 25mm
99	2MSO320-1 1/4	$400.63		1 1/4" NPT			Cv = 22 Orifice = 32mm
100	2MSO400-1 1/2	$418.95		1 1/2" NPT			Cv = 30 Orifice = 40mm
101	2MSO500-2	$629.30		2" NPT			Cv = 48 Orifice = 50mm
102	2E100-3/8	$465.74		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN	Cv = 4 Orifice = 10mm	Air, Liquid, Water, Steam	2 Way Pilot Piston Normally Closed Body: Stainless Steel Seal: PTFE Operating Temp: -40 to 356°F (-40 to 180°C) Operating Pressure: 87 to 1450PSI Option: 87 to 2300PSI Max. Pressure: 1450PSI at 72°F Coil: Class H, IP65, CE Coil Power: 13 to 28W	Downloads: 2E100-250.PDF 3D Model (3/8").PDF 3D Model (3/8").STEP
103	2E150-1/2	$580.66		1/2" NPT			Cv = 9.2 Orifice = 15mm
104	2E200-3/4	$698.01		3/4" NPT			Cv = 16 Orifice = 20mm
105	2E250-1	$771.80		1" NPT			Cv = 24 Orifice = 25mm
106	2D150-1/2	$86.50		1/2" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 3.7 Orifice = 15mm	Air, Liquid, Oil, Water	2 Way Slow Closing Pilot Diaphragm Normally Closed (Option: Normally Open) Body: Brass Seal: NBR (Buna N). Option: FKM, EPDM Media Temp: 14 to 176°F (14 to 266°F FKM) Ambient Temp: 23 to 110°F Operating Pressure: 4 to 175PSI (AC Coil), 4 to 145PSI (DC Coil) Coil: Class H, IP65 Coil Power: 12 to 20W	Downloads: 2D150-500.PDF
107	2D200-3/4	$107.38		3/4" NPT			Cv = 7 Orifice = 20mm
108	2D250-1	$136.88		1" NPT			Cv = 11.1 Orifice = 25mm
109	2D320-1 1/4	$217.82		1 1/4" NPT			Cv = 14 Orifice = 32mm
110	2D400-1 1/2	$282.62		1 1/2" NPT			Cv = 24.5 Orifice = 40mm
111	2D500-2	$364.26		2" NPT			Cv = 35 Orifice = 50mm
112	2DS150-1/2	$99.32		1/2" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 3.7 Orifice = 15mm	Air, Oil, Gas, Water	2 Way Slow Closing Pilot Diaphragm Normally Closed (Option: Normally Open) Body: 304 Stainless Steel (Option: 316SS) Seal: NBR (Buna N). Option: FKM, EPDM Media Temp: 14 to 176°F (14 to 266°F FKM) Ambient Temp: 23 to 110°F Operating Pressure: 4 to 175PSI (AC Coil), 4 to 145PSI (DC Coil) Coil: Class H, IP65 Coil Power: 12 to 20W	Downloads: 2DS150-500.PDF
113	2DS200-3/4	$120.70		3/4" NPT			Cv = 7 Orifice = 20mm
114	2DS250-1	$172.13		1" NPT			Cv = 11.1 Orifice = 25mm
115	2DS320-1 1/4	$256.62		1 1/4" NPT			Cv = 14 Orifice = 32mm
116	2DS400-1 1/2	$315.50		1 1/2" NPT			Cv = 24.5 Orifice = 40mm
117	2DS500-2	$411.92		2" NPT			Cv = 35 Orifice = 50mm

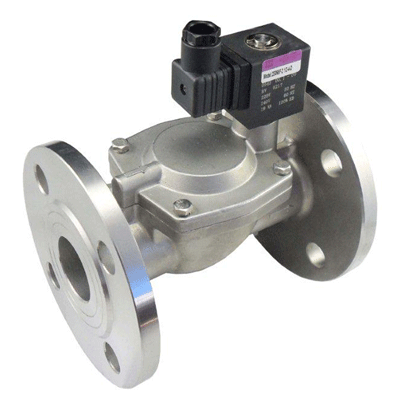

118	2DS500-2F	$713.16		2" Flange	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 30 Orifice = 50mm	Air, Inert Gas, Water, Liquid	2 Way Pilot Piston Normally Closed Body: 304 Stainless Steel Seal: NBR (Buna N) Operating Temp: 23 to 176°F (-2 to 80°C) Pressure: 6 to 175PSI (AC Coil), 4 to 116PSI (DC Coil) Maximum Pressure: 175PSI at 72°F (AC Coil) Coil: Class H, IP65, CE Coil Power: 13 to 20W	Downloads: 2DS500-1500.PDF 3D Model.PDF
119	2DS650-2 1/2F	$1,508.72		2 1/2" Flange			Cv = 53 Orifice = 65mm
120	2DS800-3F	$1,737.32		3" Flange			Cv = 82 Orifice = 80mm
121	2DS1000-4F	$2,596.83		4" Flange			Cv = 128 Orifice = 100mm
122	2DS1500-6F	$5,058.90		6" Flange			Cv = 292 Orifice = 150mm
123	2DSO500F	$749.78		2" Flange	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC	D = DIN	Cv = 48 Orifice = 50mm	Air, Inert Gas, Water, Liquid	2 Way Pilot Piston Normally Open Body: 304 Stainless Steel Seal: NBR (Buna N) Operating Temp: 23 to 176°F (-5 to 80°C) Pressure: 6 to 120PSI (AC Coil), 6 to 87PSI (DC Coil) Maximum Pressure: 120PSI at 72°F (AC Coil) Coil: Class H, IP65, CE Coil Power: 20 to 30W	Downloads: 2DSO500-1500.PDF
124	2DSO650F	$1,545.29		2 1/2" Flange			Cv = 53 Orifice = 65mm
125	2DSO800F	$1,773.88		3" Flange			Cv = 82 Orifice = 100mm
126	2DSO1000F	$2,596.83		4" Flange			Cv = 128 Orifice = 100mm
127	2DSO1500F	$5,124.00		6" Flange			Cv = 292 Orifice = 150mm
128	2R130-3/8	$75.53		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN	Cv = 4.5 Orifice = 13mm	Air, Gas, Liquid, Oil, Water	2 Way Pilot Diaphragm Normally Closed Body: Brass Seal: NBR (Buna N). Option: FKM, EPDM Media Temp: 14 to 176°F (14 to 266°F FKM) Ambient Temp: 23 to 110°F Pressure: 4.5 to 232PSI Coil: Class H, IP65 Coil Power: 12 to 20W	Downloads: 2R130-500.PDF
129	2R150-1/2	$86.50		1/2" NPT			Cv = 4.5 Orifice = 15mm
130	2R200-3/4	$107.38		3/4" NPT			Cv = 7.6 Orifice = 20mm
131	2R250-1	$136.88		1" NPT			Cv = 12 Orifice = 25mm
132	2R320-1 1/4	$217.82		1 1/4" NPT			Cv = 22 Orifice = 32mm
133	2R400-1 1/2	$282.62		1 1/2" NPT			Cv = 30 Orifice = 40mm
134	2R500-2	$364.26		2" NPT			Cv = 48 Orifice = 50mm
135	2RS130-3/8	$106.12		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN	Cv = 4.5 Orifice = 13mm	Air, Gas, Liquid, Oil, Water	2 Way Pilot Diaphragm Normally Closed Body: 304 Stainless Steel (Option: 316SS) Seal: NBR (Buna N). Option: FKM, EPDM Media Temp: 14 to 176°F (14 to 266°F FKM) Ambient Temp: 23 to 110°F Operating Pressure: 4.5 to 232PSI Coil: Class H, IP65 Coil Power: 12 to 20W	Downloads: 2RS130-500.PDF
136	2RS150-1/2	$106.12		1/2" NPT			Cv = 4.5 Orifice = 15mm
137	2RS200-3/4	$120.70		3/4" NPT			Cv = 7.6 Orifice = 20mm
138	2RS250-1	$172.13		1" NPT			Cv = 12 Orifice = 25mm
139	2RS320-1 1/4	$256.62		1 1/4" NPT			Cv = 22 Orifice = 32mm
140	2RS400-1 1/2	$315.50		1 1/2" NPT			Cv = 30 Orifice = 40mm
141	2RS500-2	$411.92		2" NPT			Cv = 48 Orifice = 50mm
142	2RO130-3/8	$159.53		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN	Cv = 4.5 Orifice = 13mm	Air, Gas, Liquid, Oil, Water	2 Way Pilot Diaphragm Normally Open Body: Brass Seal: NBR (Buna N). Option: FKM, EPDM Media Temp: 14 to 176°F (14 to 266°F FKM) Ambient Temp: 23 to 110°F Pressure: 3/8" to 1": 4.5 to 185PSI (AC); 4.5 to 87PSI (DC) 1 1/4" to 2": 4.5 to 116PSI (AC); 4.5 to 87PSI (DC) Coil: Class H, IP65 Coil Power: 12 to 20W	Downloads: 2RO130-500.PDF
143	2RO150-1/2	$170.50		1/2" NPT			Cv = 5.2 Orifice = 15mm
144	2RO200-3/4	$191.38		3/4" NPT			Cv = 7.6 Orifice = 20mm
145	2RO250-1	$220.88		1" NPT			Cv = 12 Orifice = 25mm
146	2RO320-1 1/4	$301.82		1 1/4" NPT			Cv = 24 Orifice = 32mm
147	2RO400-1 1/2	$366.94		1 1/2" NPT			Cv = 30 Orifice = 40mm
148	2RO500-2	$448.26		2" NPT			Cv = 48 Orifice = 50mm
149	2RSO130-3/8	$190.12		3/8" NPT	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC ATEX = Explosion Proof Coil	D = DIN	Cv = 4.5 Orifice = 13mm	Air, Gas, Liquid, Oil, Water	2 Way Pilot Diaphragm Normally Open Body: 304 Stainless Steel (Option: 316SS) Seal: NBR (Buna N). Option: FKM, EPDM Media Temp: 14 to 176°F (14 to 266°F FKM) Ambient Temp: 23 to 110°F Pressure: 3/8" to 1": 4.5 to 185PSI (AC); 4.5 to 87PSI (DC) 1 1/4" to 2": 4.5 to 116PSI (AC); 4.5 to 87PSI (DC) Coil: Class H, IP65 Coil Power: 12 to 20W	Downloads: 2RSO130-500.PDF
150	2RSO150-1/2	$190.12		1/2" NPT			Cv = 5.2 Orifice = 15mm
151	2RSO200-3/4	$204.70		3/4" NPT			Cv = 7.6 Orifice = 20mm
152	2RSO250-1	$256.13		1" NPT			Cv = 12 Orifice = 25mm
153	2RSO320-1 1/4	$340.62		1 1/4" NPT			Cv = 24 Orifice = 32mm
154	2RSO400-1 1/2	$399.50		1 1/2" NPT			Cv = 30 Orifice = 40mm
155	2RSO500-2	$495.92		2" NPT			Cv = 48 Orifice = 50mm

Solenoid Coils & Accessories
Item	Part No.	Unit Price	Picture	Voltage	Electrical Connection	Power Rating	Applications	Specifications

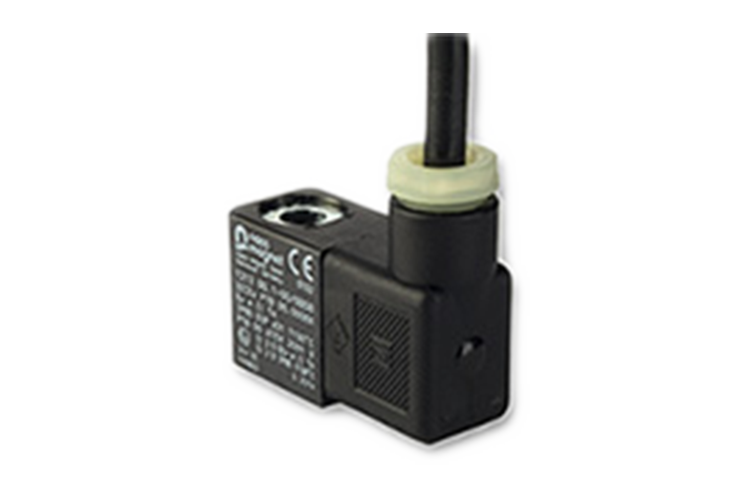

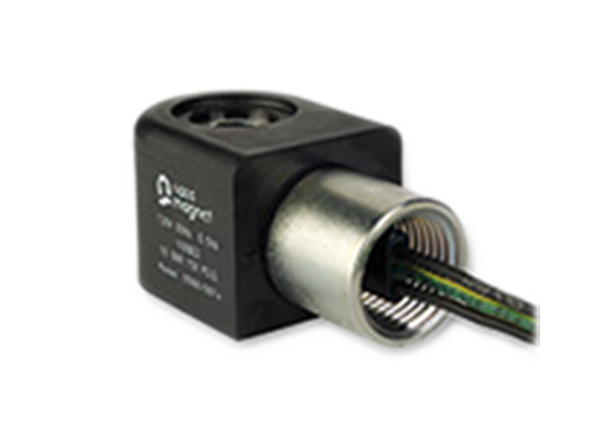

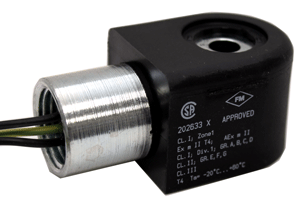

156	200C	$9.59		1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz)	D = DIN (with LED indicator and conduit connector)	3W 4.8W 6.5W	For 2P, 2V, 3V, and 4V 200-400 Series Solenoid Valves	Insulation: F Class, IP65 Duty Cycle: 100% ED CE Certification Installed with 12" Wires DIN 43650B
157	200C	$9.59			G = Grommet	3W 4.8W 6.5W	For 2P, 2V, 3V, and 4V 200-400 Series Solenoid Valves	Insulation: F Class, IP65 Duty Cycle: 100% ED CE Certification 10" Lead Wires
200C Coil Accessories

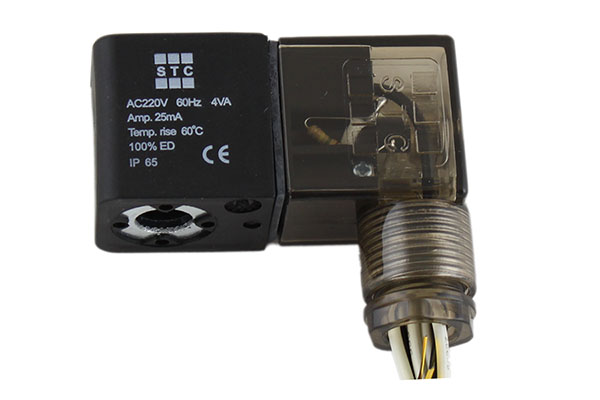

158	200C-DIN-AC	$3.99	Dimensions	N/A	D = DIN	N/A	For 200C DIN VAC Coil	LED Indicator and Strain Relief Connector, DIN 43650B

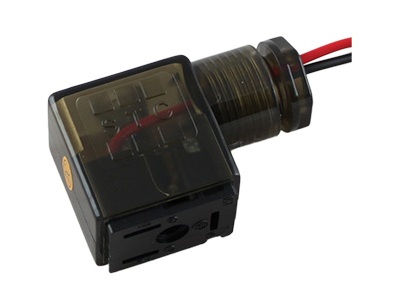

159	200C-DIN-DC	$3.99	Dimensions	N/A	D = DIN	N/A	For 200C DIN VDC Coil	LED Indicator and Strain Relief Connector, DIN 43650B

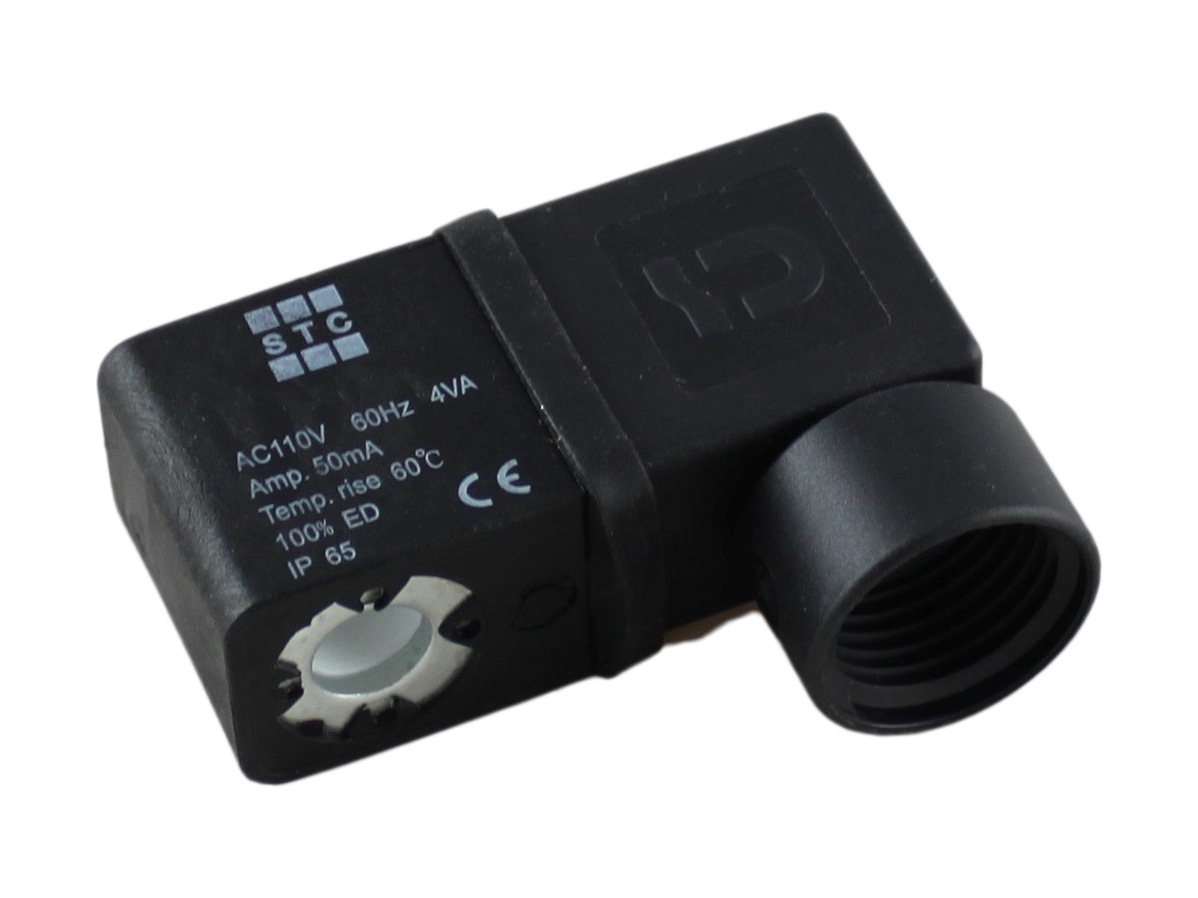

160	200C-DIN N1/2	$4.43		N/A	D = DIN	N/A	For 200C DIN Coil	200C DIN Coil Conduit Connector with 1/2" NPT Connector, DIN 43650B

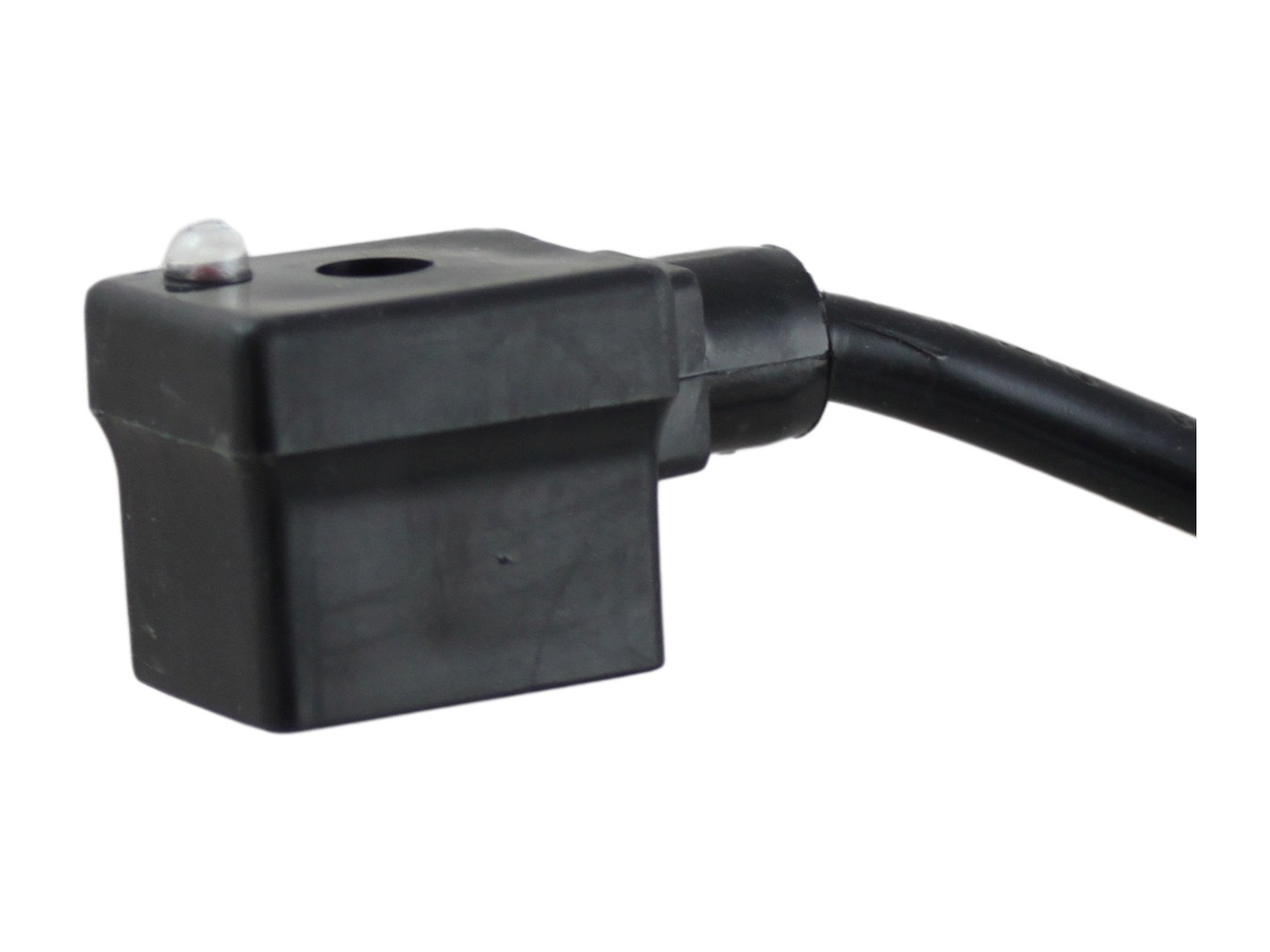

161	200C-DIN 2M-LED	$12.95		N/A	D = DIN	N/A	For 200C DIN Coil	200C DIN Coil Connector with 2 meter cable, DIN 43650B
162	200C-DIN-12-24D-S	$10.58		For 12-24 VAC/VDC Coil	D = DIN	N/A	For 200C DIN Coil	DIN Connector for 200C DIN Coil (12-24 VAC/VDC) with LED Indicator & MOV Suppression, DIN 43650B
163	200C-DIN-110D-S	$10.58		For 110-120 VAC Coil	D = DIN	N/A	For 200C DIN Coil	DIN Connector for 200C DIN Coil (110-120VAC) with LED Indicator & MOV Suppression, DIN 43650B

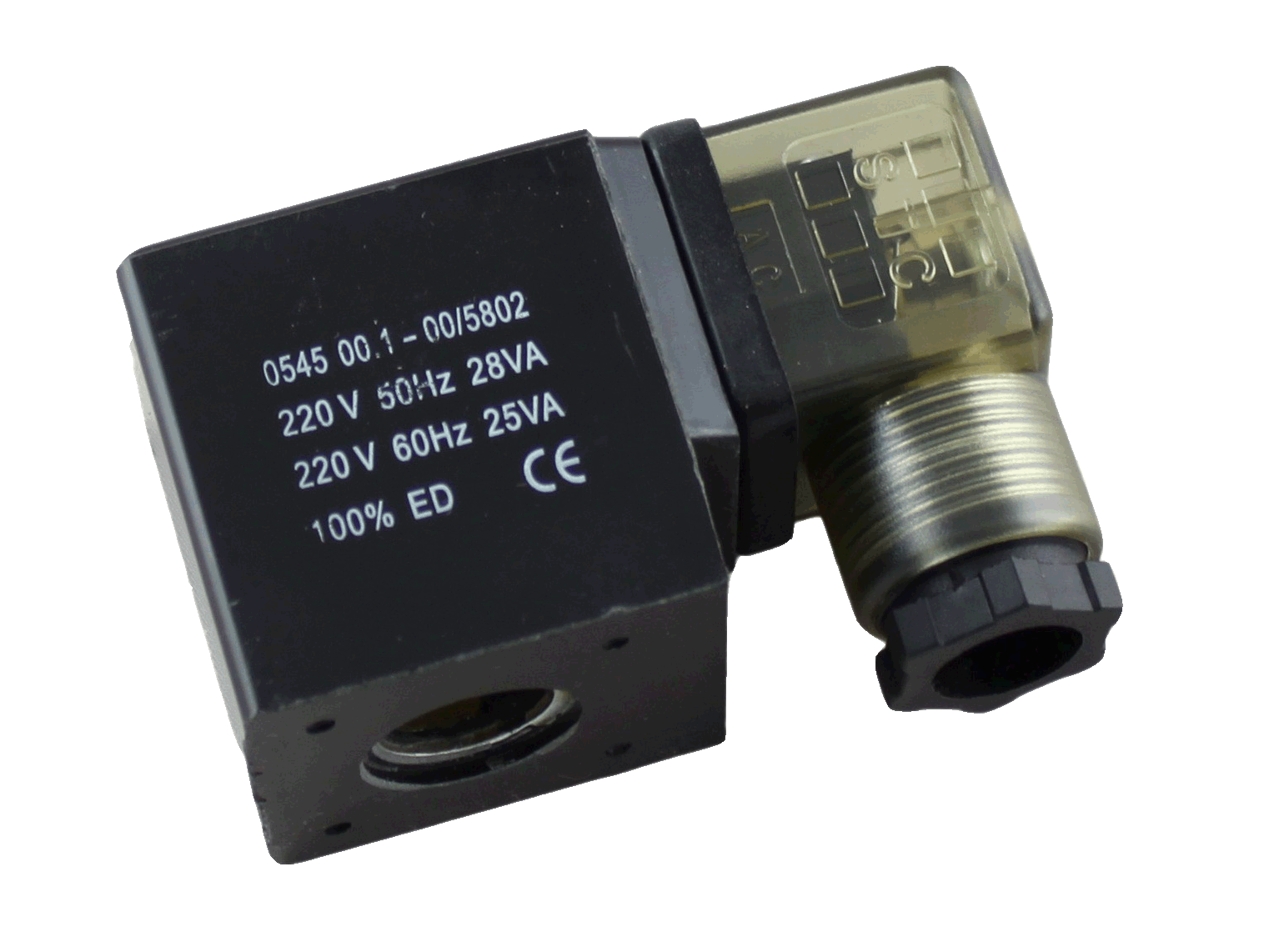

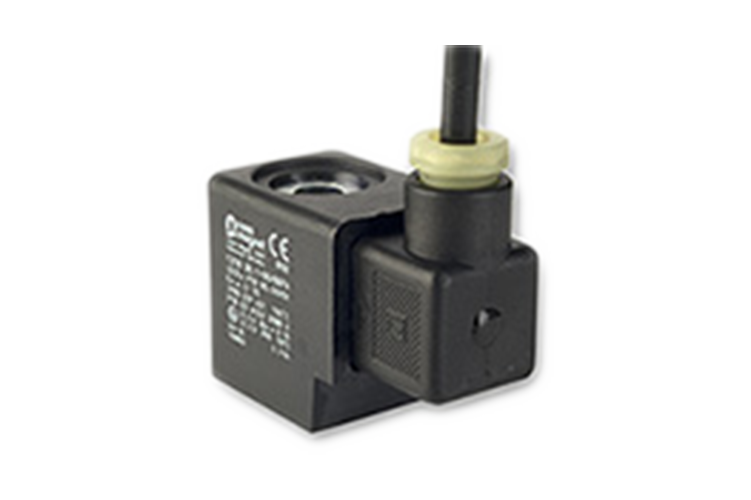

2W200C Coil
164	2W200C	$27.95		1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz)	D = DIN (with conduit connector)	12W 14W 20W	For 2S/2W025-250, 3S/3W020-035 Series Solenoid Valves with DIN and 5/16" Strain Relief Connection	Insulation: H Class, IP65 Duty Cycle: 100% ED DIN 43650A
2W200C Coil Accessories
165	2W200C-DIN-AC or DC	$3.99	Dimensions	AC or DC Versions Available	D = DIN	N/A	For 2W200C Coil	DIN Housing with strain relief connector, LED Indicator, DIN 43650A

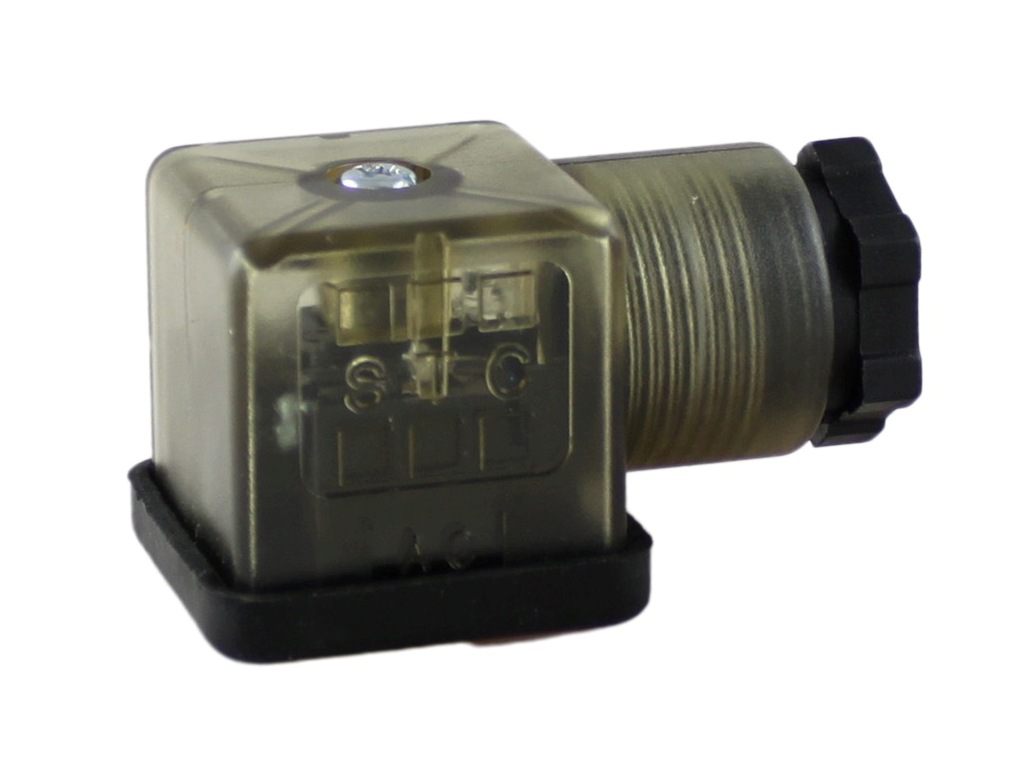

166	2W200C-DIN-AC-DC	$8.23		N/A	D = DIN	N/A	For 2W200C Coil	AC to DC Converter - DIN Housing with LED Indicator, Strain Relief Connector, DIN 43650A

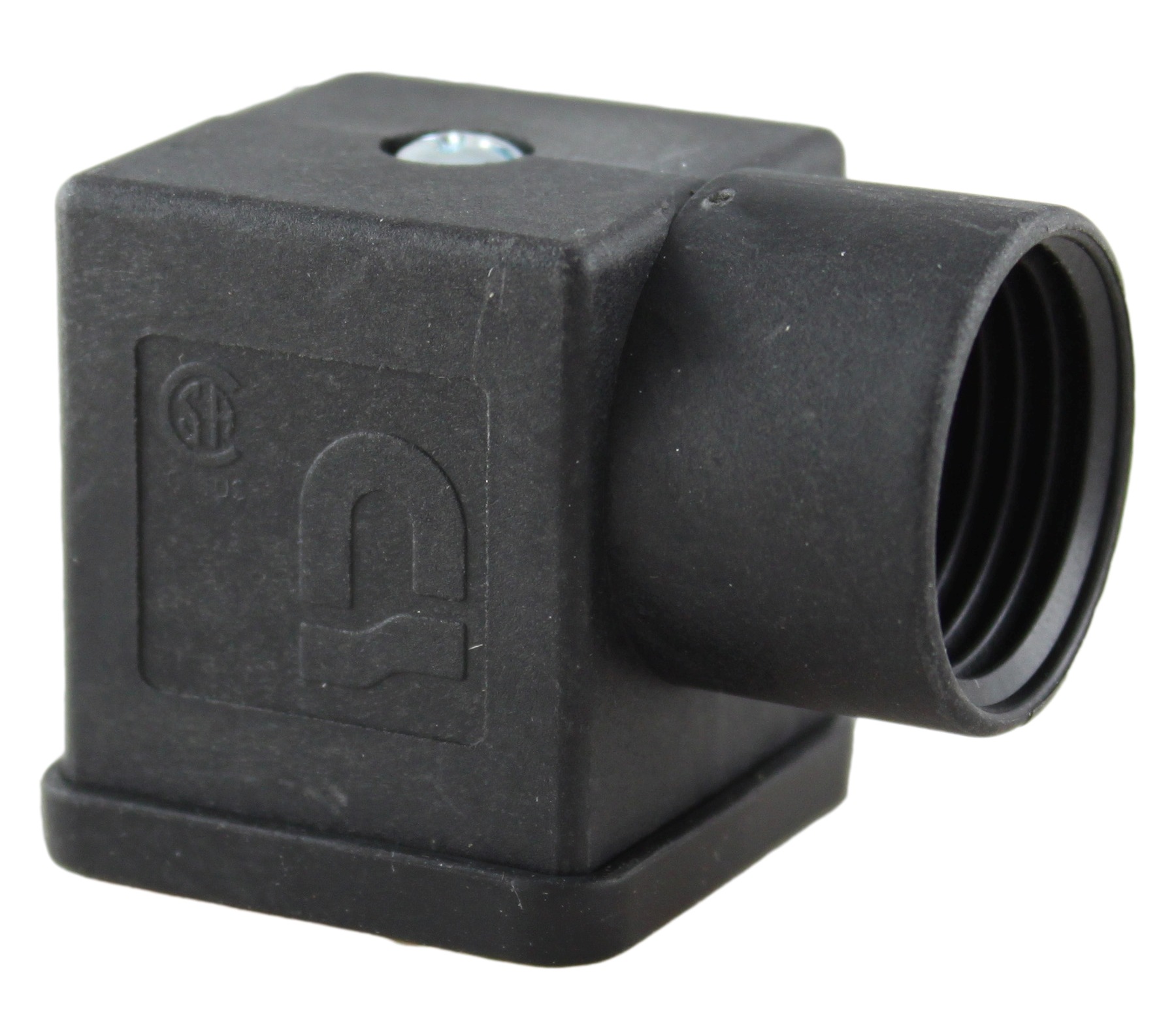

167	2W200C-DIN N1/2	$5.45		N/A	D = DIN	N/A	For 2W200C Coil	DIN Housing with 1/2" NPT Connector, DIN 43650A

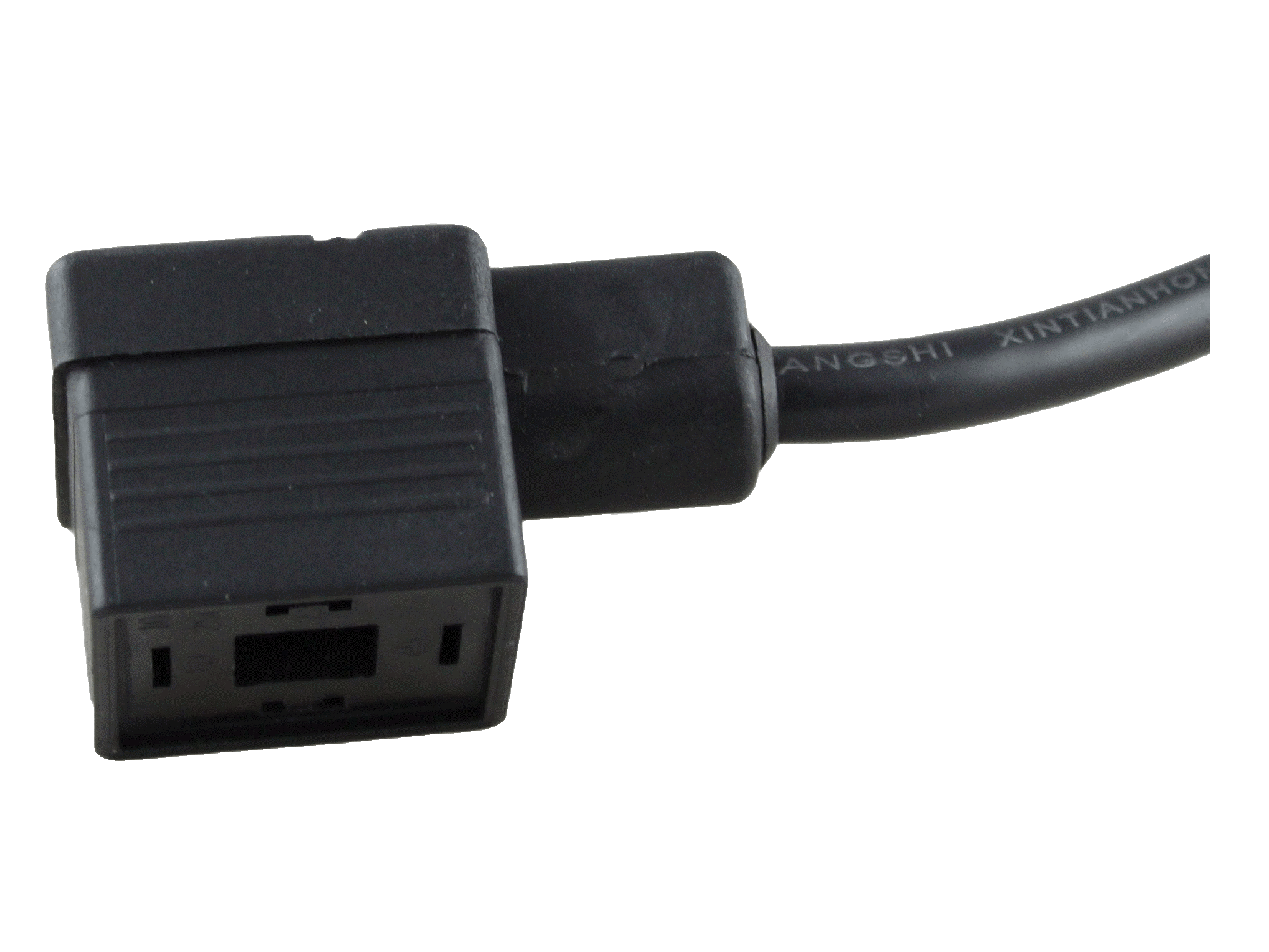

168	2W250C-DIN-1/2M	$6.66		N/A	D = DIN	N/A	For 2W200C Coil	Molded DIN Housing with 0.5 Meter 3*0.75mm² PVC Cable Connector, DIN 43650A
169	2W250C-DIN-1M	$7.86					For 2W200C Coil	Molded DIN Housing with 1 Meter 3*0.75mm² PVC Cable Connector, DIN 43650A
170	2W250C-DIN-2M	$10.14					For 2W200C Coil	Molded DIN Housing with 2 Meter 3*0.75mm² PVC Cable Connector, DIN 43650A
Other Coils
171	2WO250C	$43.25		1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz)	D = DIN (with conduit connector)	25-30W	For 2LS120-200, 2MS/2MSO120-500, 2P/2PO160-260, 2S/2W350-500, 2SO/2WO160-260 Series Solenoid Valves with DIN and 5/16" Strain Relief Connection	Insulation: H Class, IP65 Duty Cycle: 100% ED DIN 43650A
172	2W350C	$43.25		1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz)	D = DIN (with conduit connector)	25-40W	For 2L170-300, 2LS250-500, 2SO/2WO350-500 Series Solenoid Valves with DIN and 5/16" Strain Relief Connection	Insulation: H Class, IP65 Duty Cycle: 100% ED DIN 43650A
Explosion Proof Coils
173	200C	$103.79	Explosion Proof Coils.pdf	1-E = 12VDC 2-E = 24VDC 3-E = 110VAC 4-E = 220VAC (50/60Hz)	1/2" NPT conduit connection & 24" Three-Strand Wires		ATEX Explosion Proof Coil for Models: 2P025, 2V025, 3P010, 2S012-020, 3S012, 2V130-250, 3V110-410, 4V110-410 (Valve Body is Not Included)	IP65, Class F Insulation, 100% Duty Cycle DC = 4.5W (12VDC) / 4.6W (24VDC); AC = 6.8VA 1/2" NPT Conduit Connection with 24" Three-Strand Wires RoHS Compliant CSA 202633 Certificate Specifications: Class I, Div 1, Groups A, B, C, & D Class I, Div 2, Groups A, B, C, & D Class II, Groups E, F, & G; Class III FM 3006713 Certificate Specifications: Class I, Div 1, Groups A, B, C, D, T4, Ta = 60°C Encapsulation/Exp. Class I, Zone 1, AEx m II T4, Ta = 60°C Dust-Ignition Class II/III, Div 1, Groups E, F, & G, T4, Ta = 60°C Nonincendive Class I, Div 2, Groups A, B, C, D, T4, Ta = 60°C Suitable for Class II, II, Div 2, Groups E, F, G, T4, Ta = 60°C
173	200C	$103.79	Explosion Proof Coils.pdf	1-ATEX = 12VDC 2-ATEX = 24VDC 2A-ATEX = 24VAC 3-ATEX = 110VAC 4-ATEX = 220VAC (50/60Hz)	DIN 43650B Connection with 10ft 3-Wired Cable & Sleeve		ATEX Explosion Proof Coil for Models: 2P025, 2V025, 3P010, 2S012-020, 3S012, 2V130-250, 3V110-410, 4V110-410 (Valve Body is Not Included)	ATEX Explosion Proof Coil Ex II 2 G Ex mb IIC T4Gb Ex 2 D EX mb tb IIIC T130°C Db IP65, Class F Insulation, 100% Duty Cycle Max. Media Temp. 176°F (180°C) Ambient Temp: -4 to 122°F (-20 to 50°C) RoHS Compliant
174	2W200C	$174.50	Explosion Proof Coils.pdf	2-ATEX = 24VDC 2A-ATEX = 24VAC 3-ATEX = 110VAC 4-ATEX = 220VAC	DIN 43650A Connection with 10ft 3-Wired Cable & Sleeve		ATEX Explosion Proof Coil for Models: 2P050, 2S025-050, 3S020-035, 2S160-250, 2W160-250, 2R130-500, 2RS130-500, 2RSO130-500, 2RO130-500 (Valve Body is Not Included)	ATEX Explosion Proof Coil Ex II 2 G Ex mb II T4 Gb Ex II 2 D EX tb IIIC T130°C Db IP65, Class F Insulation, 100% Duty Cycle Max. Media Temp. 176°F (180°C) Ambient Temp: -4 to 122°F (-20 to 50°C) RoHS Compliant
To connect DIN coil: 1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil. 2. From the screw opening, use the screw to push the terminal block out of the plastic housing. 3. Note the 1, 2, and ground markings on the underside of the DIN enclosure. 4. For DC DIN coil, connect 1 to Positive, 2 to Negative. 5. For AC DIN coil, connect 1 to HOT wire, 2 to Neutral wire, and if required, connect ground to ground wire. To connect Grommet coil: 1. For DC Coil, connect one of the two wires to Positive, and the other wire to Negative. 2. For AC Coil, connect one of the two wires to HOT wire, and the other wire to Neutral wire.

Digital Timers
Item	Part No.	Unit Price	Picture	Voltage	Electrical Connection	Applications	Specifications

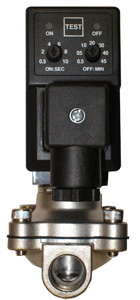

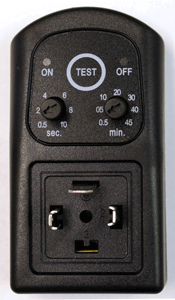

176	2W200C-T	$30.24		24-240VDC or AC 50/60Hz, 1A	DIN43650A Connection	For 2W200C, 2W350C, 2WO Coils	On/Off Timer Switch On/Off Adjustment Duration: On 0.5 seconds to 10 seconds, Off 30 seconds to 45 minutes.
177	2W200C-T-D	$49.59		24-240V DC or AC 50/60 HZ, 1A	Termination: DIN43650A	For 2W200C, 2W350C, 2WO Coils	Digital On/Off Timer Switch On/Off Adjustment Duration: On 0.5 seconds to 10 seconds, Off 30 seconds to 45 minutes. Size: 88 x 48 x 21 (mm) Protection: IP 65, EN60529

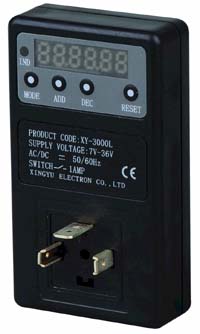

178	2W200C-T-DH	$62.25		110-220VAC 50/60HZ, 1A	Termination: DIN43650A	For 2W200C, 2W350C, 2WO Coils	Programmable Digital On/Off Timer Switch On/Off Single or Multi Cycles Adjustment Duration: On 1 second to 99 seconds, Off 1 second to 99 hours. Size: 88 x 48 x 21 (mm) Protection: IP65, EN0529 Downloads: 2W200C-T-D.PDF

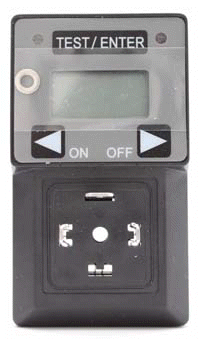

179	2W200C-T-DL	$62.25		7-36V DC or AC, 3A	Termination: DIN43650A	For 2W200C, 2W350C, 2WO Coils
180	2W200C-PS-H	$11.98		100-280VAC 50/60HZ, 1A	Termination: DIN43650A	For 2W200C, 2W350C, 2WO Coils	Power Save Device High Power Start Up Time: 0.3 - 2.5 seconds Energy Save Rate: 15 to 85% Power Up Grade: 20 to 300% (AC Only) Size: 88 x 48 x 21 (mm) Protection: IP65, EN60529 Downloads: 2W200C-PS.PDF
181	2W200C-PS-L	$11.98		12-36V DC or AC, 2A	Termination: DIN43650A	For 2W200C, 2W350C, 2WO Coils

Home	Terms of Use	Terms of Sale	Career	Contact Us	Click Here to Order
Sizto Tech Corporation © 2001- All rights reserved. Last modified: April 6, 2017. Information contained herein may be changed without prior notification.
