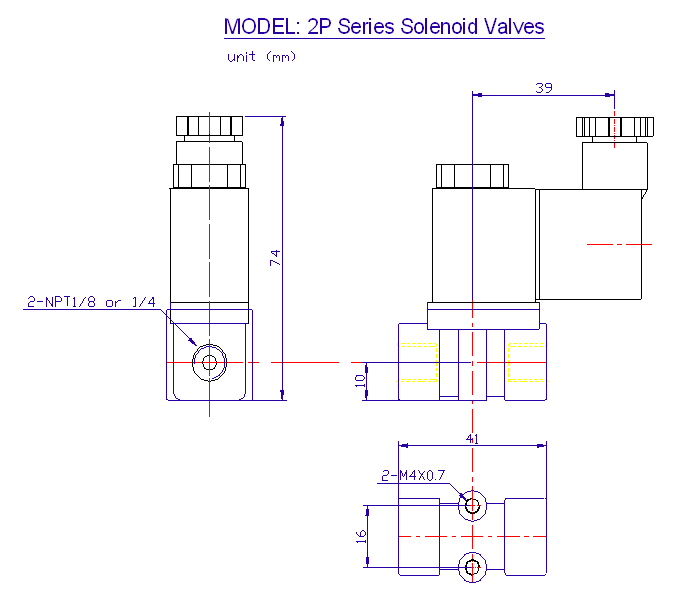

Solenoid Valve Specifications & Dimensions: 2P Series

Part No. Valve Picture Port Size (NPT) Voltage Electrical Connection Port No / Position / Solenoid Cv / Flow Rate Response Time Power Consumption Valve Symbol
2P025-1/8 1/8" 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
G = Grommet
D = DIN (with LED Indicator)
2/2/1
Direct Acting
Normally Closed
Two Way Valve
0.23
22 SCFM @ 100PSI
<20ms 3W for 40PSI
4.8W for 60PSI
6.5W for 115PSI
2P025-1/4 1/4"
2P035-1/8 1/8" 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
G = Grommet
D = DIN (with LED Indicator)
3/2/1
Direct Acting
Normally Closed
Three Way Valve
0.1
5 SCFM @ 100PSI
<20ms 3W for 40PSI
4.8W for 60PSI
6.5W for 115PSI
2P035-1/4 1/4"

Specifications
Port & Mounting Body Ported
Action & Motion Direct Acting, Normally Closed, Two Position, 2 to 3 Way
Operating Pressure 28" Hg to 115PSI (Coil Wattage Dependent)
Working Medium Air, Inert Gas, & Liquid
Maximum Pressure 150PSI
Operating Temperature -5 to 80°C with non-freezing medium
Coil Insulation & Protection Class F Class, IP 65 (CE Certification)
Coil Duty Cycle 100% ED
Electrical Connection D = DIN (with LED indicator, conduit terminal)
G = Grommet (12" Lead Wire)
Body Material PA66 (Nylon, Engineered Plastic)
Seal Material NBR (Buna N)
Armature Tube Brass
Plunger & Spring Stainless Steel

The 2P Series Valves are normally closed, direct acting solenoid valves and do not require a minimum differential pressure to operate. As shown in the diagram below, when the coil is de-energized (left diagram), the plunger rests on the main orifice and is held in place by the plunger spring force, sealing the valve. When the coil is energized (right diagram), the solenoid lifts the plunger and allows the working medium to flow through the orifice. The working medium and flow direction are indicated in purple in the diagram.

STC's high performance direct acting plastic body solenoid valves offer reliability, compact and rugged designs, low power consumption, high-speed response, long-life cycle (over 10 million cycles), DIN connections and indicator lights, pre-wired electrical connections, manifold mounting options, and simple installation, maintenance, and control.



Electrical Coil Connections
