Stainless Steel Air Fittings / Push In Connectors (Gripper Style)

STC provides a complete line of Stainless Steel push to connect fittings, including both inch and metric sizes. We have a large stock of products in our California warehouse, ready to be shipped out same-day! We can also custom-make a wide variety of 316SS fittings to meet your specific needs. For more information, please take a look at the links below:

Collet Style Gripper Style Custom-Made Fittings Stainless Steel Fittings Specification Guide

Stainless Steel (Gripper Style) Fittings Selection Guide (Click on a picture to get details)
Bulkhead Connector	Branch Tee	Bulkhead Union	Cartridge Fitting	Elbow Union	Female Connector	Hex Bushing	Male Connector

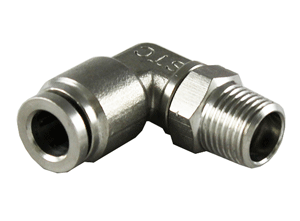

Male Elbow (Swivel)	Run Tee	Reduced Union	Straight Union	Tube Adaptor	Tube Connector	Tube Reducer	Tee Union

STC Stainless Steel (Gripper Style) Fittings List Price

Model		Bulkhead Connector		Branch Tee (Swivel)		Female Connector		Male Connector		Male Elbow (Swivel)		Run Tee (Swivel)
Model		BCS		BTS		FCS		MCS		MES		RTS
Tube OD	Pipe Size	Part No.	Price	Part No.	Price	Part No.	Price	Part No.	Price	Part No.	Price	Part No.	Price
1/8"	10-32	BCS 1/8 10-32 W	$23.82	BTS 1/8 10-32 W	$24.69	FCS 1/8 10-32 W	$10.25	MCS 1/8 10-32 W	$8.79	MES 1/8 10-32 W	$17.48	RTS 1/8 10-32 W	$24.69
1/8"	NPT1/8	BCS 1/8 N1/8 W	$23.82	BTS 1/8 N1/8 W	$24.69	FCS 1/8 N1/8 W	$10.25	MCS 1/8 N1/8 W	$8.79	MES 1/8 N1/8 W	$17.48	RTS 1/8 N1/8 W	$24.69
1/8"	NPT1/4	BCS 1/8 N1/4 W	$26.36	BTS 1/8 N1/4 W	$25.94	FCS 1/8 N1/4 W	$14.39	MCS 1/8 N1/4 W	$9.22	MES 1/8 N1/4 W	$21.00	RTS 1/8 N1/4 W	$25.94
5/32"	10-32	BCS 5/32 10-32 W	$23.82	BTS 5/32 10-32 W	$24.69	FCS 5/32 10-32 W	$10.25	MCS 5/32 10-32 W	$8.79	MES 5/32 10-32 W	$17.47	RTS 5/32 10-32 W	$24.69
5/32"	NPT1/8	BCS 5/32 N1/8 W	$23.82	BTS 5/32 N1/8 W	$24.69	FCS 5/32 N1/8 W	$10.25	MCS 5/32 N1/8 W	$8.79	MES 5/32 N1/8 W	$17.47	RTS 5/32 N1/8 W	$24.69
5/32"	NPT1/4	BCS 5/32 N1/4 W	$26.36	BTS 5/32 N1/4 W	$27.22	FCS 5/32 N1/4 W	$13.69	MCS 5/32 N1/4 W	$8.79	MES 5/32 N1/4 W	$17.47	RTS 5/32 N1/4 W	$27.22
1/4"	10-32	BCS 1/4 10-32 W	$27.03	BTS 1/4 10-32 W	$24.69	FCS 1/4 10-32 W	$10.25	MCS 1/4 10-32 W	$8.79	MES 1/4 10-32 W	$18.60	RTS 1/4 10-32 W	$24.69
1/4"	NPT1/8	BCS 1/4 N1/8 W	$27.03	BTS 1/4 N1/8 W	$24.69	FCS 1/4 N1/8 W	$10.25	MCS 1/4 N1/8 W	$8.79	MES 1/4 N1/8 W	$18.61	RTS 1/4 N1/8 W	$24.69
1/4"	NPT1/4	BCS 1/4 N1/4 W	$27.03	BTS 1/4 N1/4 W	$28.38	FCS 1/4 N1/4 W	$10.25	MCS 1/4 N1/4 W	$8.79	MES 1/4 N1/4 W	$20.11	RTS 1/4 N1/4	$28.38
1/4"	NPT3/8	BCS 1/4 N3/8 W	$28.29	BTS 1/4 N3/8 W	$32.37	FCS 1/4 N3/8 W	$11.04	MCS 1/4 N3/8 W	$9.58	MES 1/4 N3/8 W	$20.92	RTS 1/4 N3/8	$32.37
5/16"	NPT1/8	BCS 5/16 N1/8 W	$28.29	BTS 5/16 N1/8 W	$31.04	FCS 5/16 N1/8 W	$14.47	MCS 5/16 N1/8 W	$11.69	MES 5/16 N1/8 W	$21.28	RTS 5/16 N1/8 W	$31.04
5/16"	NPT1/4	BCS 5/16 N1/4 W	$28.29	BTS 5/16 N1/4 W	$31.04	FCS 5/16 N1/4 W	$14.47	MCS 5/16 N1/4 W	$11.69	MES 5/16 N1/4 W	$21.97	RTS 5/16 N1/4 W	$31.04
5/16"	NPT3/8	BCS 5/16 N3/8 W	$28.29	BTS 5/16 N3/8 W	$35.67	FCS 5/16 N3/8 W	$14.47	MCS 5/16 N3/8 W	$12.35	MES 5/16 N3/8 W	$22.47	RTS 5/16 N3/8 W	$35.67
5/16"	NPT1/2	BCS 5/16 N1/2 W	$29.56	BTS 5/16 N1/2 W	$36.94	FCS 5/16 N1/2 W	$17.00	MCS 5/16 N1/2 W	$13.36	MES 5/16 N1/2 W	$27.10	RTS 5/16 N1/2 W	$37.77
3/8"	NPT1/8	BCS 3/8 N1/8 W	$31.50	BTS 3/8 N1/8 W	$35.67	FCS 3/8 N1/8 W	$17.56	MCS 3/8 N1/8 W	$11.69	MES 3/8 N1/8 W	$23.28	RTS 3/8 N1/8 W	$35.67
3/8"	NPT1/4	BCS 3/8 N1/4 W	$31.50	BTS 3/8 N1/4 W	$35.67	FCS 3/8 N1/4 W	$17.56	MCS 3/8 N1/4 W	$11.69	MES 3/8 N1/4 W	$23.28	RTS 3/8 N1/4 W	$35.67
3/8"	NPT3/8	BCS 3/8 N3/8 W	$31.50	BTS 3/8 N3/8 W	$35.67	FCS 3/8 N3/8 W	$19.04	MCS 3/8 N3/8 W	$11.87	MES 3/8 N3/8 W	$24.15	RTS 3/8 N3/8 W	$35.67
3/8"	NPT1/2	BCS 3/8 N1/2 W	$31.50	BTS 3/8 N1/2 W	$39.65	FCS 3/8 N1/2 W	$19.70	MCS 3/8 N1/2 W	$13.36	MES 3/8 N1/2 W	$27.67	RTS 3/8 N1/2 W	$39.65
1/2"	NPT1/4	BCS 1/2 N1/4 W	$33.97	BTS 1/2 N1/4 W	$39.06	FCS 1/2 N1/4 W	$17.68	MCS 1/2 N1/4 W	$14.32	MES 1/2 N1/4 W	$29.69	RTS 1/2 N1/4 W	$39.06
1/2"	NPT3/8	BCS 1/2 N3/8 W	$35.23	BTS 1/2 N3/8 W	$39.06	FCS 1/2 N3/8 W	$19.70	MCS 1/2 N3/8 W	$14.32	MES 1/2 N3/8 W	$29.69	RTS 1/2 N3/8 W	$39.06
1/2"	NPT1/2	BCS 1/2 N1/2 W	$37.77	BTS 1/2 N1/2 W	$41.73	FCS 1/2 N1/2 W	$20.34	MCS 1/2 N1/2 W	$18.89	MES 1/2 N1/2 W	$33.81	RTS 1/2 N1/2 W	$41.73

4mm	M5	BCS 4 M5 W	$23.82	BTS 4 M5 W	$24.69	FCS 4 M5 W	$10.25	MCS 4 M5 W	$8.79	MES 4 M5 W	$17.47	RTS 4 M5 W	$24.69
4mm	R1/8	BCS 4 R1/8 W	$23.82	BTS 4 R1/8 W	$24.69	FCS 4 R1/8 W	$10.25	MCS 4 R1/8 W	$8.79	MES 4 R1/8 W	$17.47	RTS 4 R1/8 W	$24.69
4mm	R1/4	BCS 4 R1/4 W	$23.82	BTS 4 R1/4 W	$24.69	FCS 4 R1/4 W	$10.25	MCS 4 R1/4 W	$10.12	MES 4 R1/4 W	$17.47	RTS 4 R1/4 W	$24.69
6mm	M5	BCS 6 M5 W	$27.03	BTS 6 M5 W	$24.69	FCS 6 M5 W	$10.25	MCS 6 M5 W	$10.12	MES 6 M5 W	$20.11	RTS 6 M5 W	$24.69
6mm	R1/8	BCS 6 R1/8 W	$27.03	BTS 6 R1/8 W	$24.69	FCS 6 R1/8 W	$10.25	MCS 6 R1/8 W	$10.12	MES 6 R1/8 W	$18.61	RTS 6 R1/8 W	$24.69
6mm	R1/4	BCS 6 R1/4 W	$27.03	BTS 6 R1/4 W	$28.38	FCS 6 R1/4 W	$10.25	MCS 6 R1/4 W	$10.12	MES 6 R1/4 W	$20.11	RTS 6 R1/4 W	$28.38
6mm	R3/8	BCS 6 R3/8 W	$28.29			FCS 6 R3/8 W	$13.14	MCS 6 R 3/8 W	$12.35	MES 6 R3/8 W	$25.02
8mm	R1/8	BCS 8 R1/8 W	$28.29			FCS 8 R1/8 W	$13.14	MCS 8 R1/8 W	$11.69	MES 8 R1/8 W	$21.26	RTS 8 R1/8 W	$31.03
8mm	R1/4	BCS 8 R1/4 W	$28.29	BTS 8 R1/4 W	$31.04	FCS 8 R1/4 W	$13.15	MCS 8 R1/4 W	$11.69	MES 8 R1/4 W	$22.32	RTS 8 R1/4 W	$31.04
8mm	R3/8	BCS 8 R3/8 W	$28.29	BTS 8 R3/8 W	$33.71	FCS 8 R3/8 W	$14.47	MCS 8 R3/8 W	$12.35	MES 8 R3/8 W	$22.47	RTS 8 R3/8 W	$33.71
10mm	R1/4	BCS 10 R1/4 W	$31.50	BTS 10 R1/4 W	$35.67	FCS 10 R1/4 W	$15.80	MCS 10 R1/4 W	$11.69	MES 10 R1/4 W	$23.28	RTS 10 R1/4 W	$35.67
10mm	R3/8	BCS 10 R3/8 W	$31.50	BTS 10 R3/8 W	$35.67	FCS 10 R3/8 W	$16.87	MCS 10 R3/8 W	$11.87	MES 10 R3/8 W	$24.15	RTS 10 R3/8 W	$35.67
12mm	R1/4	BCS 12 R1/4 W	$35.23			FCS 12 R1/4 W	$17.68	MCS 12 R1/4 W	$14.32	MES 12 R1/4 W	$33.81
12mm	R3/8	BCS 12 R3/8 W	$35.23	BTS 12 R3/8 W	$39.06	FCS 12 R3/8 W	$17.68	MCS 12 R3/8 W	$14.32	MES 12 R3/8 W	$29.69	RTS 12 R3/8 W	$39.06
12mm	R1/2	BCS 12 R1/2 W	$35.23	BTS 12 R1/2 W	$41.73	FCS 12 R1/2 W	$20.34	MCS 12 R1/2 W	$18.89	MES 12 R1/2 W	$33.81	RTS 12 R1/2 W	$41.73

Stainless Steel Bulkhead Union Push To Connect Fitting

Stainless Steel Straight Union Push To Connect Fitting

Stainless Steel Tube Connector Push To Connect Fititng

Model

Bulkhead Union

Elbow Union

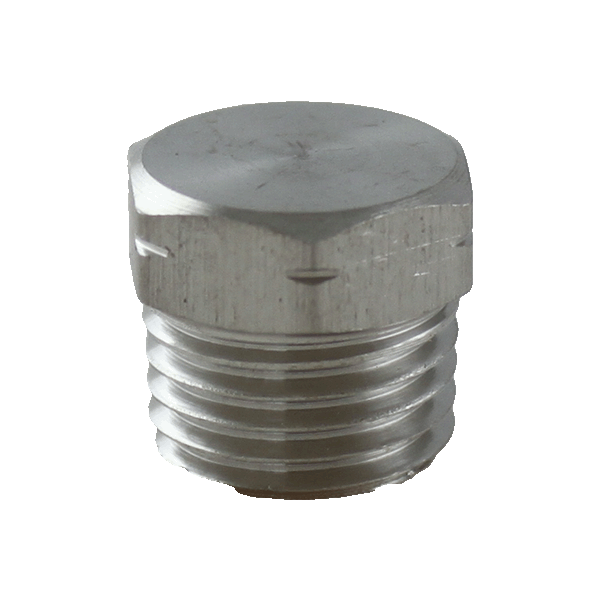

Hex Plug

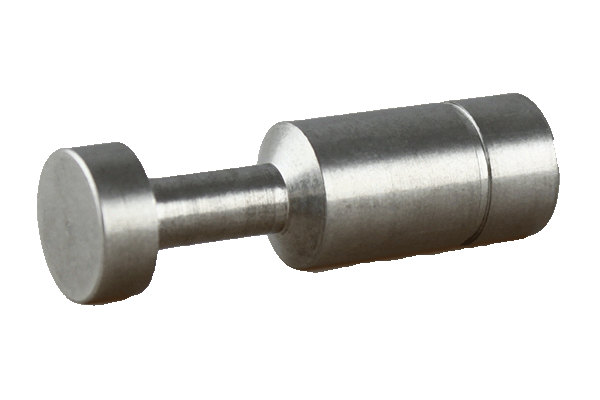

Plug

Straight Union

Tube Connector

Tee Union

Cartridge Fitting

BUS

EUS

PGS

SUS

TCS

TUS

CFS

Tube OD

Part No.

Price

Part No.

Price

Part No.

Price

Part No.

Price

Part No.

Price

Part No.

Price

Part No.

Price

Part No.

Price

1/8"

BUS 1/8 W

$16.78

EUS 1/8 W

$20.12

PGS N1/8

$5.82

PGS 1/8

$2.89

SUS 1/8 W

$12.65

TCS 1/8

$3.02

TUS 1/8 W

$24.69

CFS 1/8 W

$11.16

5/32"

BUS 5/32 W

$16.78

EUS 5/32 W

$20.11

PGS 5/32

$2.30

SUS 5/32 W

$12.65

TCS 5/32

$3.02

TUS 5/32 W

$24.69

CFS 5/32 W

$10.02

1/4"

BUS 1/4 W

$19.76

EUS 1/4 W

$23.10

PGS N1/4

$5.62

PGS 1/4

$2.89

SUS 1/4 W

$12.65

TCS 1/4

$3.02

TUS 1/4 W

$28.38

CFS 1/4 W

$8.62

5/16"

BUS 5/16 W

$25.29

EUS 5/16 W

$24.15

PGS 5/16

$1.62

SUS 5/16 W

$13.78

TCS 5/16

$3.02

TUS 5/16 W

$32.04

CFS 5/16 W

$9.38

3/8"

BUS 3/8 W

$26.88

EUS 3/8 W

$26.34

PGS N3/8

$7.40

PGS 3/8

$1.67

SUS 3/8 W

$14.93

TCS 3/8

$3.63

TUS 3/8 W

$35.67

CFS 3/8 W

$9.89

1/2"

BUS 1/2 W

$34.68

EUS 1/2 W

$30.30

PGS N1/2

$17.76

PGS 1/2

$2.03

SUS 1/2 W

$18.09

TCS 1/2

$4.23

TUS 1/2 W

$41.73

CFS 1/2 W

$10.52

4mm

BUS 4 W

$16.78

EUS 4 W

$20.11

SUS 4 W

$12.65

TUS 4 W

$24.69

6mm

BUS 6 W

$23.71

EUS 6 W

$23.10

PGS 6

$2.03

SUS 6 W

$12.65

TUS 6 W

$28.38

8mm

BUS 8 W

$25.29

EUS 8 W

$24.15

SUS 8 W

$13.78

TUS 8 W

$32.04

10mm

BUS 10 W

$26.88

EUS 10 W

$26.34

PGS 10

$2.03

SUS 10 W

$14.93

TCS 10

$3.63

TUS 10 W

$35.67

12mm

BUS 12 W

$34.68

EUS 12 W

$30.30

PGS 12

$2.03

SUS 12 W

$18.09

TUS 12 W

$41.73


Model		Reduced Union		Tube Reducer		Model		Tube Adaptor		Hex Bushing
Model		RUS		TRS		Model		TAS		HBS
ØD1	ØD2	Part No.	Price	Part No.	Price	Tube OD	Thread	Part No.	Price	Part No.	Price
1/8"	5/32"	RUS 5/32-1/8 W	$16.78			1/8"	10-32	TAS 1/8 10-32	$5.57
5/32"	1/8"			TRS 1/8-5/32 W	$12.65	1/8"	NPT1/8	TAS 1/8 N1/8	$5.57	HBS MN1/4-FN1/8	$3.07
5/32"	1/4"	RUS 1/4-5/32 W	$19.76			5/32"	10-32	TAS 5/32 10-32	$5.57
1/4"	5/32"			TRS 5/32-1/4 W	$12.65	1/4"	NPT1/8	TAS 1/4 N1/8	$5.57
3/8"	1/4"	RUS 3/8-5/16 W	$26.88			1/4"	NPT1/4	TAS 1/4 N1/4	$5.57
3/8"	5/16"			TRS 1/4-3/8 W	$12.65	1/4"	NPT3/8	TAS 1/4 N3/8	$5.57
3/8"	1/2"	RUS 1/2-3/8 W	$34.68	TRS 5/16-3/8 W	$13.78	5/16"	NPT1/4	TAS 5/16 N1/4	$8.21
1/2"	3/8"					5/16"	NPT3/8	TAS 5/16 N3/8	$8.21
						3/8"	NPT1/8	TAS 3/8 N1/8	$7.81	HBS MN3/8-FN1/8	$3.84
6mm	4mm	RUS 6-4 W	$23.71	TRS 4-6 W	$11.33	3/8"	NPT1/4	TAS 3/8 N1/4	$8.21	HBS MN3/8-FN1/4	$4.60
8mm	6mm	RUS 8-6 W	$25.26	TRS 6-8 W	$12.65	3/8"	NPT3/8	TAS 3/8 N3/8	$11.61
10mm	8mm	RUS 10-8 W	$26.88	TRS 8-10 W	$13.78	3/8"	NPT1/2	TAS 3/8 N1/2	$11.61
12mm	10mm	RUS 12-10 W	$34.68	TRS 10-12 W	$14.93	1/2"	NPT1/4	TAS 1/2 N1/4	$13.91	HBS MN1/2-FN1/4	$4.60
						1/2"	NPT3/8	TAS 1/2 N3/8	$13.91	HBS MN1/2-FN3/8	$4.60
						1/2"	NPT1/2	TAS 1/2 N1/2	$13.91

						6mm	M6
						6mm	N1/4	TAS 6 N1/4	$5.57
