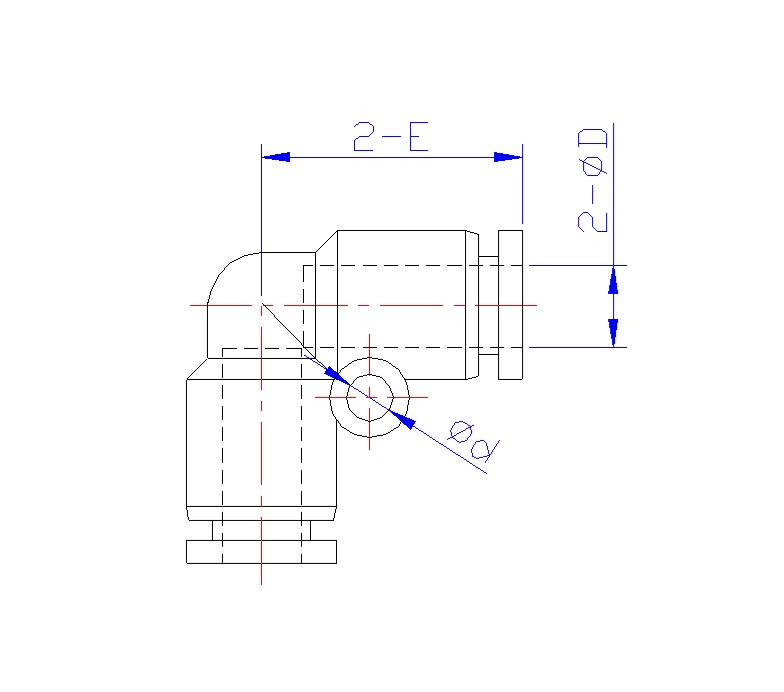

Model EUS: Elbow Union Stainless Steel Push In Fittings

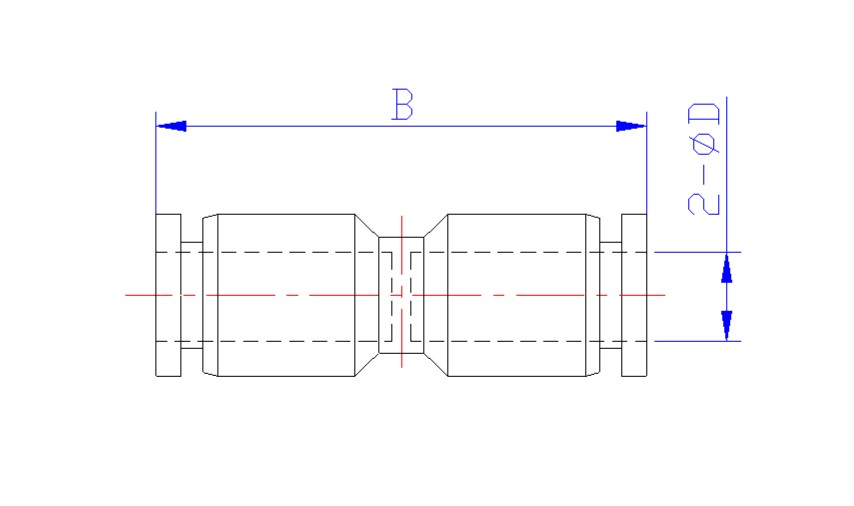

Model SUS: Straight Union Stainless Steel Push In Fittings

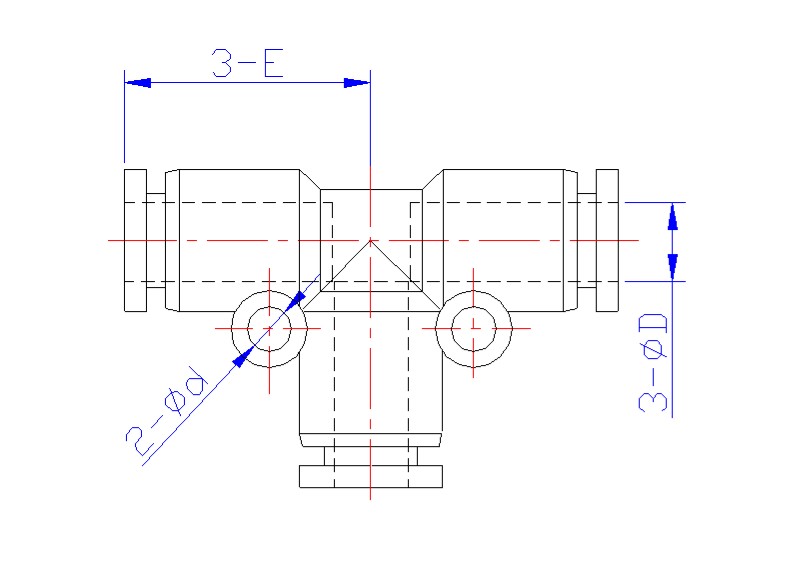

Model TUS: Tee Union Stainless Steel Push In Fittings
Stainless Steel Fitting Dimensions |
||||||
 |
 |
 |
||||
| Model | Elbow Union | Straight Union | Tee Union | |||
| EUS | SUS | TUS | ||||
| ФD | Part No. | E | Part No. | B | Part No. | E |
| 1/8" | EUS 1/8 W | 20.2 | SUS 1/8 W | 34.5 | TUS 1/8 W | 20.2 |
| 5/32" | EUS 5/32 W | 20.2 | SUS 5/32 W | 35.1 | TUS 5/32 W | 20.2 |
| 3/16" | EUS 3/16 W | 22.6 | SUS 3/16 W | 38.05 | TUS 3/16 W | 22.6 |
| 1/4" | EUS 1/4 W | 22.3 | SUS 1/4 W | 38.05 | TUS 1/4 W | 22.3 |
| 5/16" | EUS 5/16 W | 23.9 | SUS 5/16 W | 42.7 | TUS 5/16 W | 24.1 |
| 3/8" | EUS 3/8 W | 30.5 | SUS 3/8 W | 48.4 | TUS 3/8 W | 27.2 |
| 1/2" | EUS 1/2 W | 32.2 | SUS 1/2 W | 52.5 | TUS 1/2 W | 31.9 |
| 4mm | EUS 4 W | 20.2 | SUS 4 W | 35.1 | TUS 4 W | 20.2 |
| 6mm | EUS 6 W | 22.3 | SUS 6 W | 38.05 | TUS 6 W | 22.3 |
| 8mm | EUS 8 W | 23.9 | SUS 8 W | 42.7 | TUS 8 W | 24.1 |
| 10mm | EUS 10 W | 30.5 | SUS 10 W | 48.4 | TUS 10 W | 27.2 |
| 12mm | EUS 12 W | 32.2 | SUS 12 W | 52.5 | TUS 12 W | 31.9 |
| Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O. | ||||||
