Model CFS: Stainless Steel Cartridge Push In Fitting

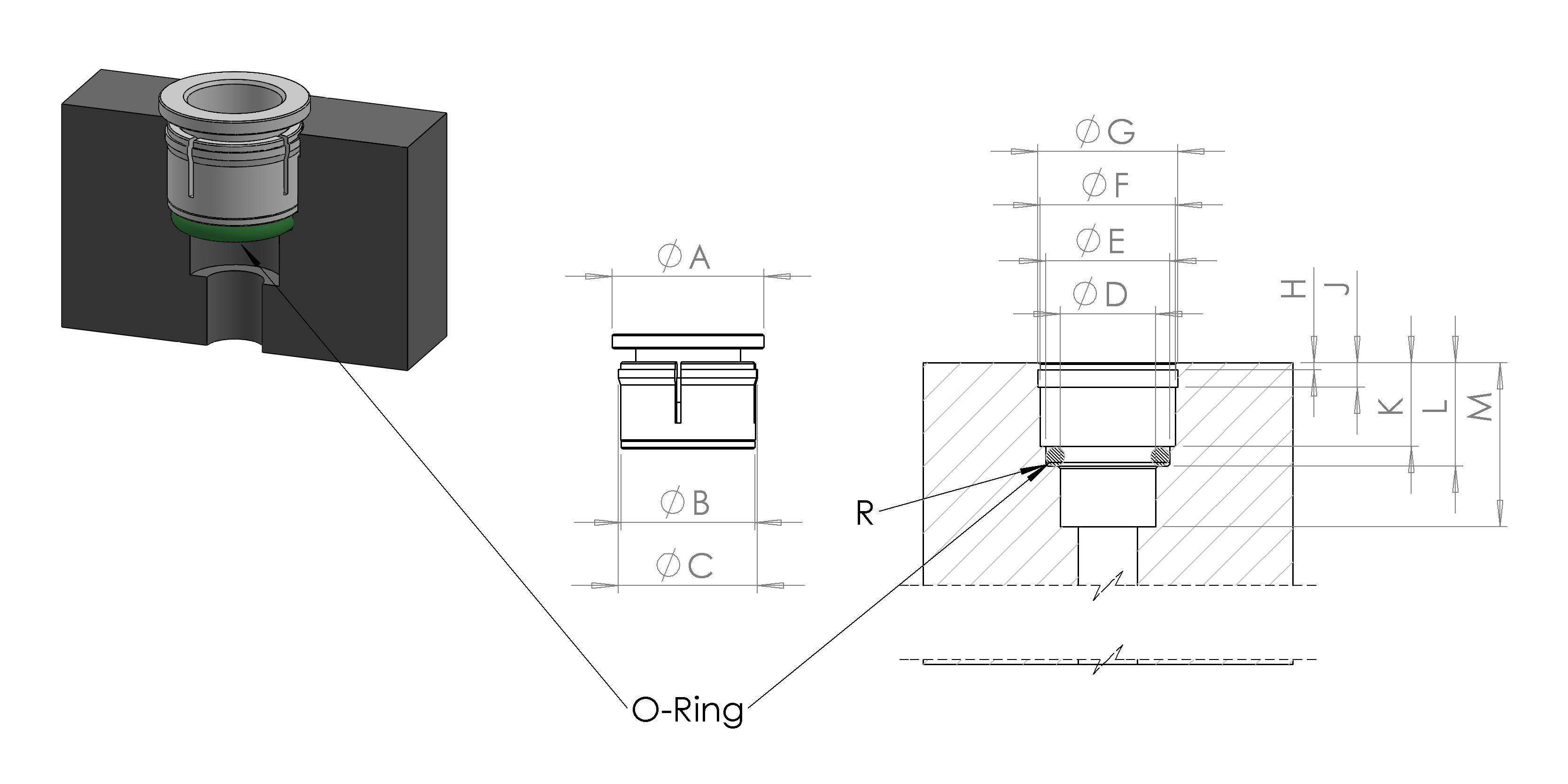

Stainless Steel Fitting Dimensions |
|||||||||||||||
 |
|||||||||||||||
| Model | Cartridge Fitting | ||||||||||||||
| CFS | |||||||||||||||
| ФD | Part No. | A | B | C | D | E | F | G | H | J | K | L | M | R | O Ring |
| 1/8 | CFS 1/8 W | 10.5 | 8.3 | 8.8 | 3.3 | 6.3 | 8.4 | 8.9 | 1 | 2.9 | 8 | 10.9 | 13.3 | R0.5 | 2.9x1.78 |
| 5/32 | CFS 5/32 W | 10.5 | 8.3 | 8.8 | 4.2 | 7 | 8.4 | 9 | 1 | 2.9 | 8 | 10.5 | 13.5 | R0.5 | 3.68x1.78 |
| 1/4 | CFS 1/4 W | 12.5 | 10.3 | 10.8 | 6.5 | 9.7 | 10.4 | 11 | 1 | 3 | 8.1 | 10.6 | 15 | R0.5 | 6.0x2.0 |
| 5/16 | CFS 5/16 W | 15 | 12.5 | 13 | 8.2 | 11.7 | 12.6 | 13.1 | 1 | 3.1 | 9.2 | 12 | 16.5 | R0.5 | 7.5x2.2 |
| 3/8 | CFS 3/8 W | 17.5 | 15.4 | 15.9 | 9.7 | 13.7 | 15.5 | 16 | 1 | 2.9 | 12.4 | 15 | 20.5 | R0.8 | 9.3x2.4 |
| 1/2 | CFS 1/2 W | 20.5 | 18.1 | 18.8 | 12.9 | 16.8 | 18.4 | 18.9 | 1 | 3.3 | 11.8 | 14.3 | 21 | R0.8 | 12.3x2.4 |
| Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O. | |||||||||||||||
Link to Stainless Steel Fittings Specification Guide
