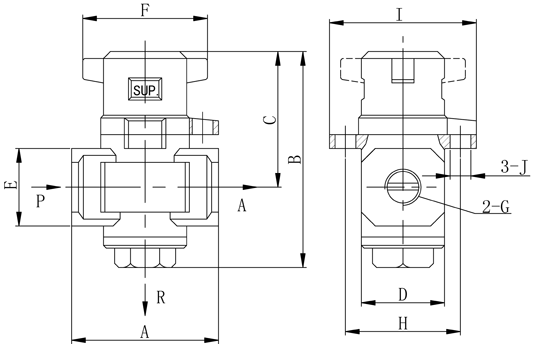

Relieving Shut-Off / Lockout Valve Dimensions |
|||||||||||||||
Model | G, P Port (NPT) | R, Vent Port (NPT) | Cv (In-out) | Cv (Out-Exh) | A | B | C | D | E | F | H | I | J | ||
VSH2000-01 | 1/8" | 1/8" | 0.5 | 0.5 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 41 | Ø6 | ||
VSH2000-02 | 1/4" | 1/8" | 0.75 | 0.85 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 53 | Ø6 | ||
VSH3000-02 | 1/4" | 1/4" | 0.85 | 0.85 | 53 | 78 | 49 | 30 | 28 | 45 | 41.5 | 53 | Ø7.5 | ||
VSH3000-03 | 3/8" | 1/4" | 1.65 | 1.6 | 53 | 78 | 49 | 30 | 28 | 45 | 41.5 | 53 | Ø7.5 | ||
VSH4000-03 | 3/8" | 3/8" | 2 | 2 | 70 | 84 | 52 | 36 | 36 | 45 | 41.5 | 53 | Ø7.5 | ||
VSH4000-04 | 1/2" | 3/8" | 2.9 | 2.5 | 70 | 84 | 52 | 36 | 36 | 45 | 41.5 | 53 | Ø7.5 |
