STC Solenoid and Pneumatic Directional Control Valve Specifications

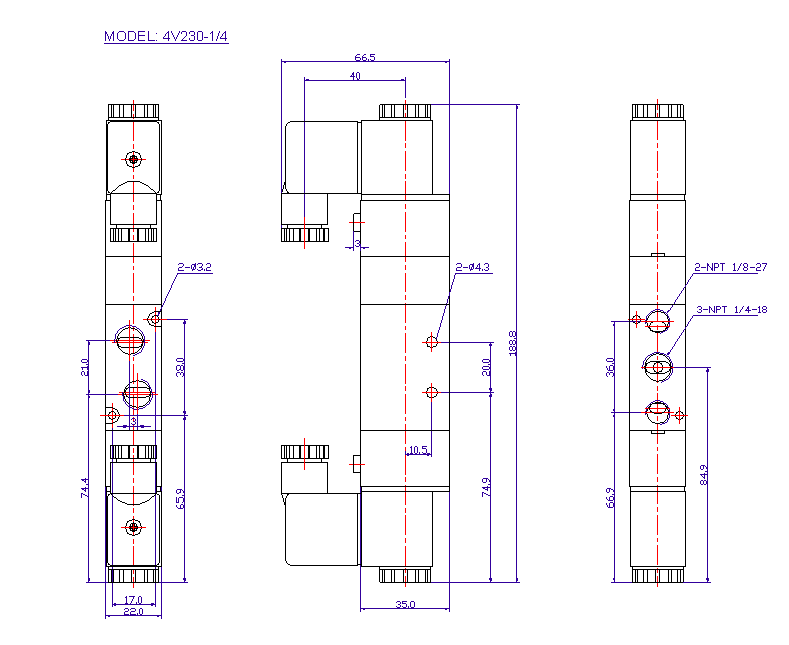

Download CAD Drawings: 4V210-1/4 4V220-1/4 4V230-1/4

Part No.	Valve Picture	Port Size (NPT)	Voltage	Electrical Connection	Port No / Position / Solenoid	Cv	Response Time	Power Rating

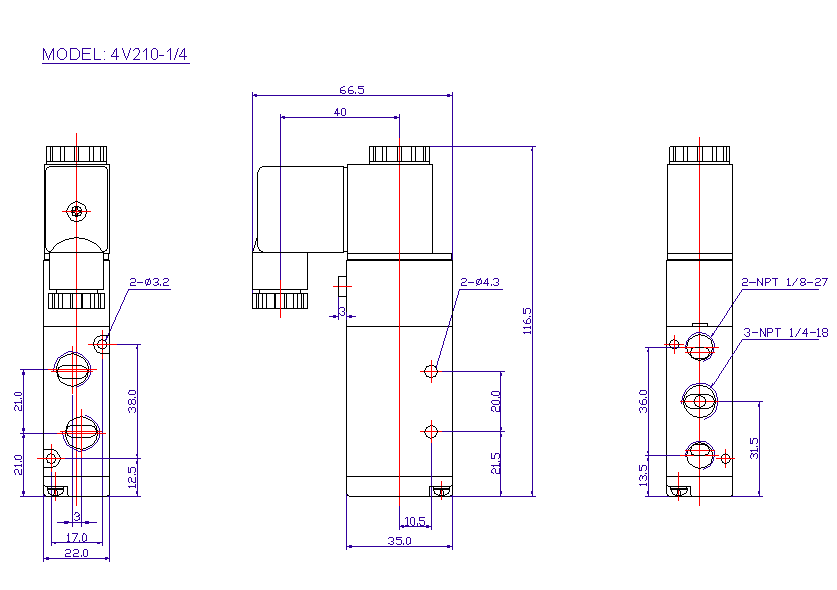

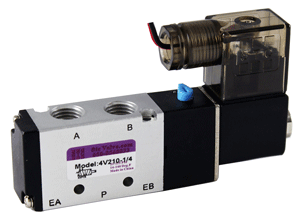

4V210-1/4	P = Supply Port A, B = Outlet Port EA, EB = Exhaust Port	1/4" (inlet/outlet) 1/8" (exhaust)	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz)	G = Grommet D = DIN (with LED Indicator)	5/2/1 Four Way Valve	0.78 53 SCFM @ 100PSI	<20ms	3 to 4.8W

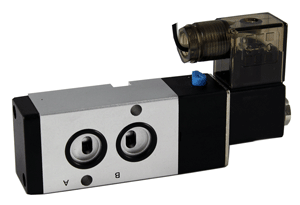

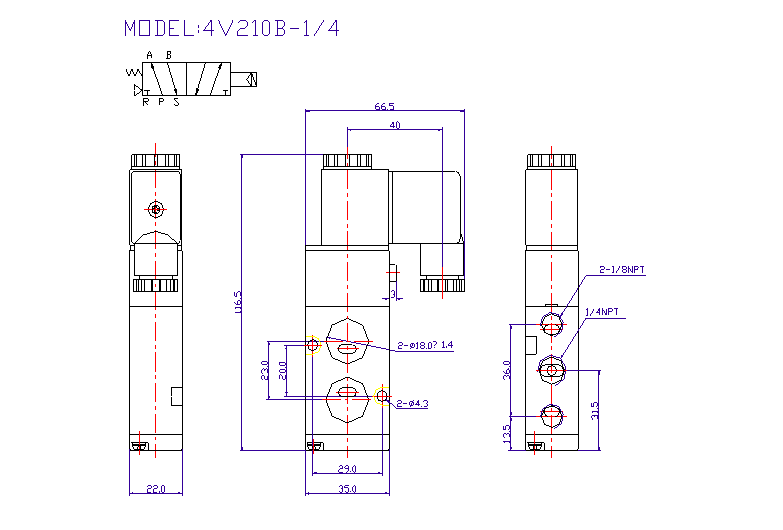

4V210B-1/4	P = Supply Port A, B = Outlet Port EA, EB = Exhaust Port	1/4" (inlet) 1/8" (exhaust)			5/2/1 Four Way Valve Actuator Mount

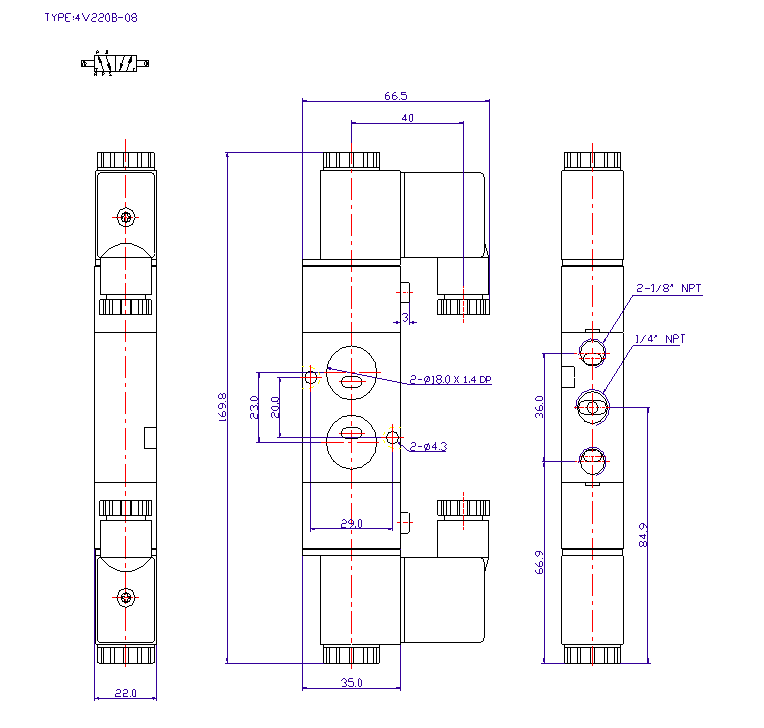

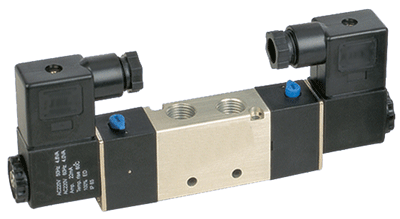

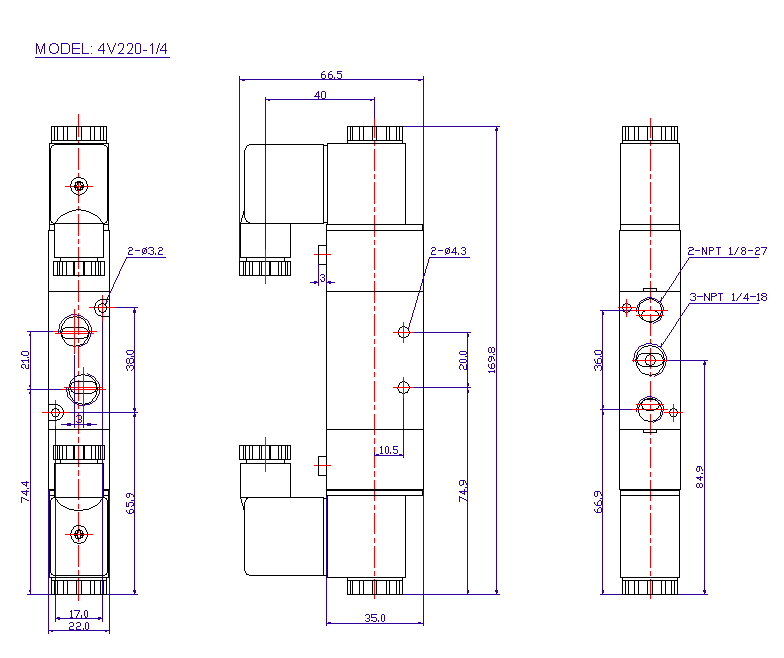

4V220-1/4	P = Supply Port A, B = Outlet Port EA, EB = Exhaust Port	1/4" (inlet/outlet) 1/8" (exhaust)			5/2/2 Four Way Valve Double Solenoid

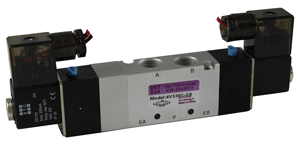

4V230C-1/4	P = Supply Port A, B = Outlet Port EA, EB = Exhaust Port	1/4" (inlet/outlet) 1/8" (exhaust)			5/3/2 Four Way Valve Double Solenoid Three Position, Closed Center
