2 Way & 3 Way Poppet Solenoid Valve Specifications & Dimensions
| Part No. | Valve Picture | Port Size (NPT) | Voltage | Electrical Connection | Port No / Position / Solenoid | Cv/Flow Rate | Response Time | Power Rating | Valve Symbol P = Inlet Port A, B = Outlet Port E, R, S = Exhaust Port |
| 2V1-1/8 |
 |
1/8" | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED Indicator) |
2/2/1 Direct Acting Normally Closed Two Way Valve Stacking |
Cv = 0.23 22 SCFM @ 100PSI |
<20ms | 3W for 40PSI 4.8W for 60PSI 6.5W for 115PSI |
 |
| 3V1-1/8 | 1/8" | 3/2/1 Direct Acting Normally Closed Three Way Valve Stacking |
Cv = 0.1 5 SCFM @ 100PSI |
 |
| Specifications | |
| Port & Mounting | Body Ported, Stackable (Stacking Hardware Included) |
| Action & Motion | Direct Acting, Normally Closed, Two Position, 2 to 3 Way |
| Operating Pressure | 28" Hg to 115PSI (Coil Wattage Dependent) |
| Working Medium | 40 micron Filtered Air, Inert Gas, & Liquid |
| Maximum Pressure | 150 PSI |
| Operating Temperature | -5 to 80°C with non-freezing medium |
| Coil Insulation & Protection Class | F Class, IP65 (CE Certification |
| Coil Duty Cycle | 100% ED |
| Electrical Connection | D = DIN (with LED indicator, conduit terminal) G = Grommet (12" Lead Wire) |
| Body Material | Anodized Aluminum |
| Seal Material | NBR (Buna N) |
| Lubrication | Not Required |
| Lubrication | Not Required |

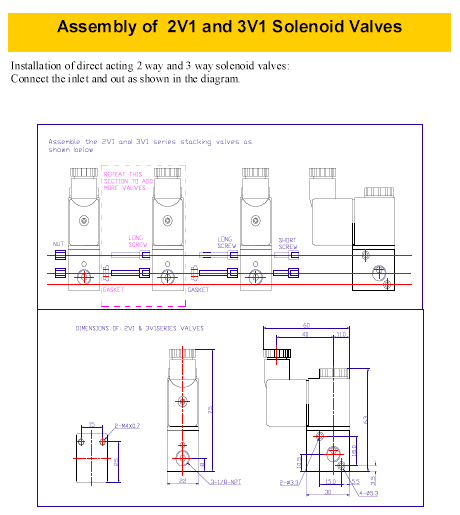

2V1 & 3V1 Installation Procedure

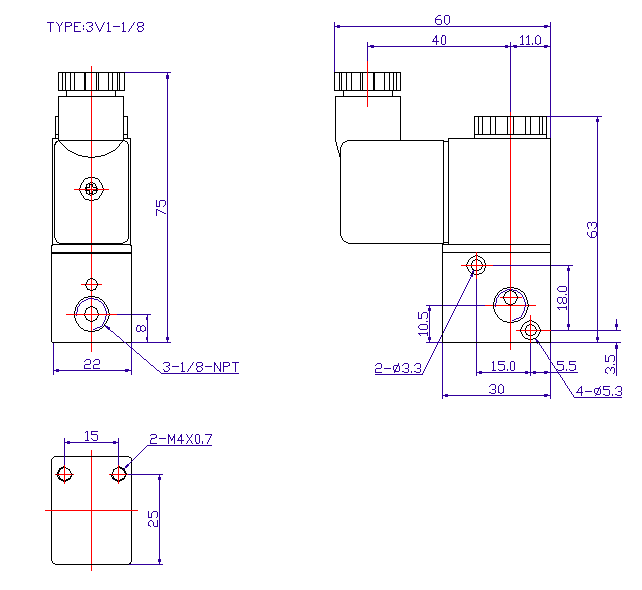

2V1 & 3V1 Series Solenoid Valve Dimensions (Units in mm)
Includes Stacking Hardware and Seals
- To Connect a DIN Coil:
- Remove the Philips screw from the plastic housting & unplug from the DIN coil.
- Use the removed screw to push the terminal block out of the plastic DIN housing.
- Note the "1", "2", and ground "⏚" symbols.
- For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
- For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
- To Connect a Grommet Coil:
- For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
- For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
- For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
- GREEN = Ground Wire
- BLUE = Positive or HOT Wire
- BROWN = Negative or Neutral Wire
