V2 Valve Specifications
Two Piece Full Port 316 Stainless Steel Ball Valve

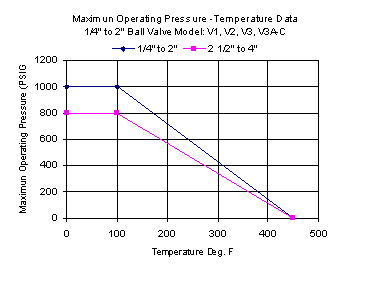

Maximum Operating Pressure: 1/4" to 2" -- 1000PSI @ 100°F WOG                                                          2 1/2" to 3" -- 800PSI @ 100°F WOG
Temperature Range: -60 to 450°F
End Connections: NPT Threaded
Design Standard ASME: B16.34, GB/T12237 Test & Inspection: API1598, JB/T9092
Main Parts & Materials
No.	Part Name	Material	Quantity
1	Seat	PTFE	2
2	Ball	SS316/CF8M	1
3	Joint Gasket	PTFE	1
4	Cap	SS316	1
5	Body	SS316	1
6	Stem	SS316	1
7	Thrust Washer	PTFE	1
8	Stem Packing	PTFE	1
9	Gland Nut	SS304	1
10	Stem Washer	SS304	1
11	Stem Nut	SS304	1
12	Handle Cover	PLASTIC	1
13	Handle	SS304	1

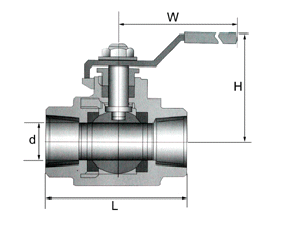

V2 Stainless Steel Ball Valve Dimensions
Size	d	L	H	W
1/4"	11.6	55	48	103
3/8"	12.7	55	48	103
1/2"	15	63.5	50	103
3/4"	20	75	57	125
1"	25.4	88	69	145
1 1/4"	32	103	73	145
1 1/2"	38	110	83	190
2"	50.8	124	92	190
2 1/2"	65	167	136	250
3"	76	192	149	250
