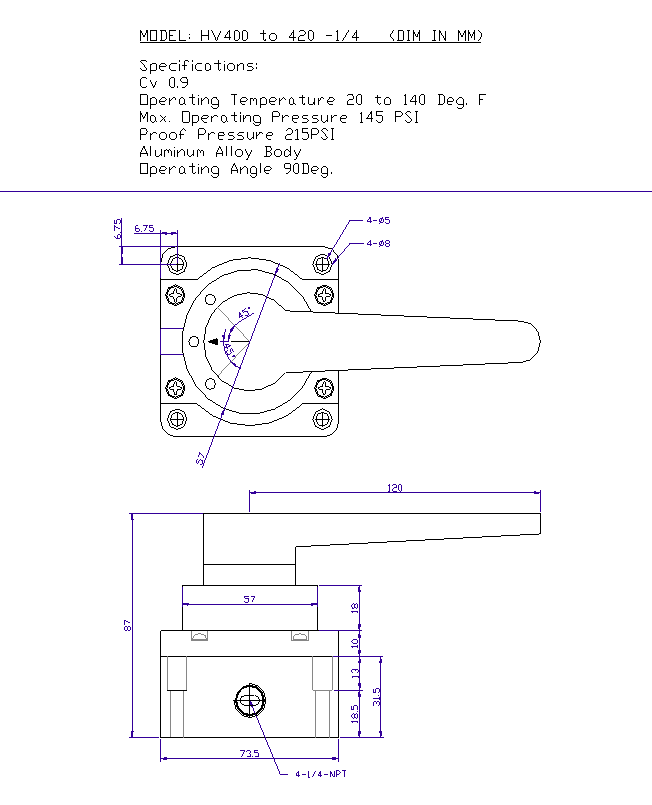

Hand Operated Dimensions (Units in mm)

Manual Air Valve

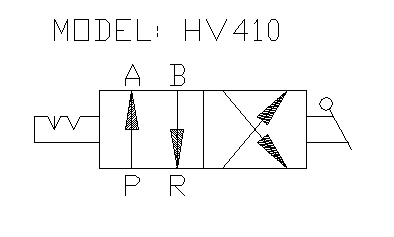

Hand Valve: 4 - 1/4" NPT ports, 3 position, 4 way, and Closed Center

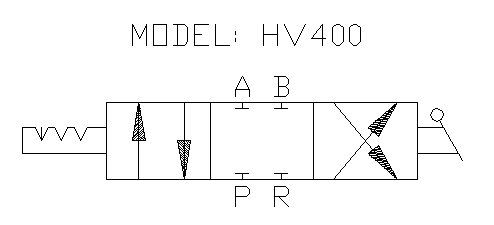

Hand Valve: 4 - 1/4" NPT ports, 2 position, 4 way
