Solenoid Valve Specifications & Dimensions: 2V025 & 2V035 Series

Part No.	Valve Picture	Port Size (NPT)	Voltage	Electrical Connection	Port No / Position / Solenoid	Cv/Orifice/ Flow Rate/Pressure	Response Time	Power Rating	Valve Symbol P = Inlet Port A, B = Outlet Port E, R, S = Exhaust Port
2V025-1/8		1/8"	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz)	G = Grommet D = DIN (with LED Indicator)	2/2/1 Direct Acting Normally Closed Two Way Valve	Cv = 0.23 Orifice = 2mm 22 SCFM @ 100PSI 0 - 115PSI	<20ms	3W for 60PSI 4.8W for 115PSI 6.5W for 150PSI
2V025-1/4		1/4"
2V035-1/8		1/8"	1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz)	G = Grommet D = DIN (with LED Indicator)	3/2/1 Direct Acting Normally Closed Three Way Valve	Cv = 0.05 Orifice = 1mm 5 SCFM @ 100PSI 0 - 115PSI	<20ms	3W for 60PSI 4.8W for 115PSI 6.5W for 150PSI
2V035-1/4		1/4"

Specifications
Port & Mounting	Body Ported
Action & Motion	Direct Acting, Normally Closed, Two Position, 2 to 3 Way
Operating Pressure	28" Hg to 115PSI (Coil Wattage Dependent)
Working Medium	Air, Inert Gas, & Liquid
Operating Temperature	-5 to 80°C with non-freezing medium
Coil Insulation & Protection Class	F Class, IP 65 (CE Certification)
Coil Duty Cycle	100% ED
Electrical Connection	D = DIN (with LED indicator, conduit terminal) G = Grommet (12" Lead Wire)
Body Material	Anodized Aluminum
Seal Material	NBR (Buna N)
Armature Tube	Brass
Plunger & Spring	Stainless Steel
Lubrication	Not Required

The 2V Series Valves are normally closed, direct acting solenoid valves and do not require a minimum differential pressure to operate. As shown in the diagram below, when the coil is de-energized (left diagram), the plunger rests on the main orifice and is held in place by the plunger spring force, sealing the valve. When the coil is energized (right diagram), the solenoid lifts the plunger and allows the working medium to flow through the orifice. The working medium and flow direction are indicated in purple in the diagram.

2V025-035 Installation Procedure

STC's high performance direct acting plastic body solenoid valves offer reliability, compact and rugged designs, low power consumption, high-speed response, long-life cycle (over 10 million cycles), DIN connections and indicator lights, pre-wired electrical connections, manifold mounting options, and simple installation, maintenance, and control.

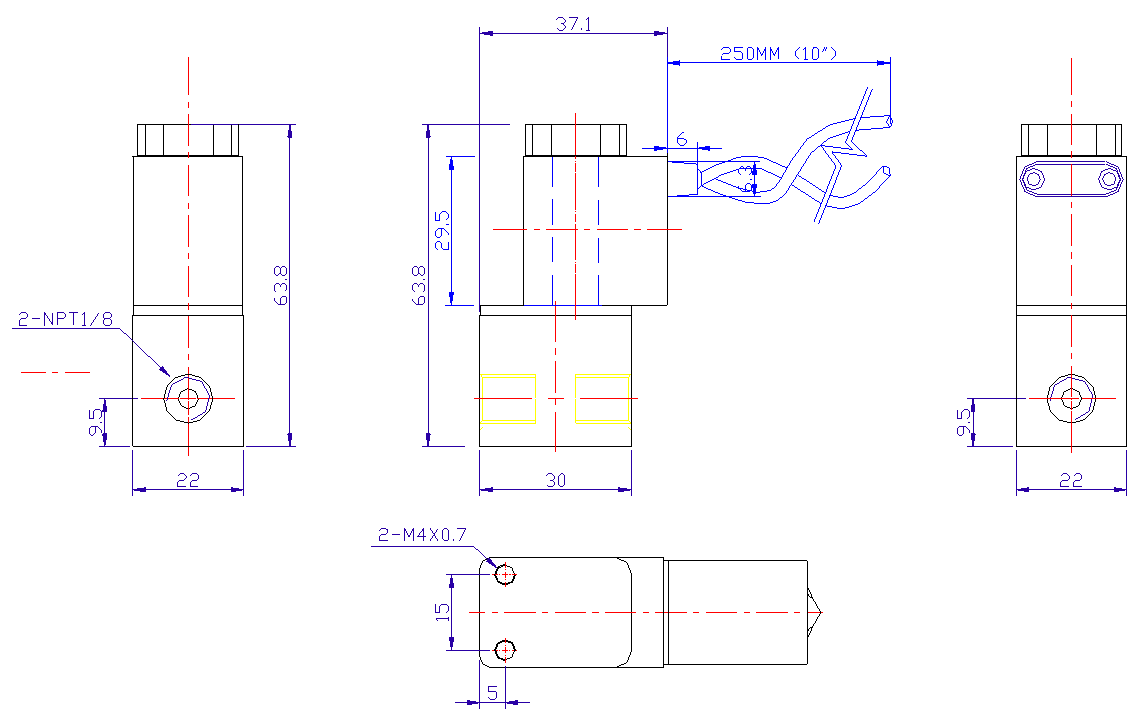

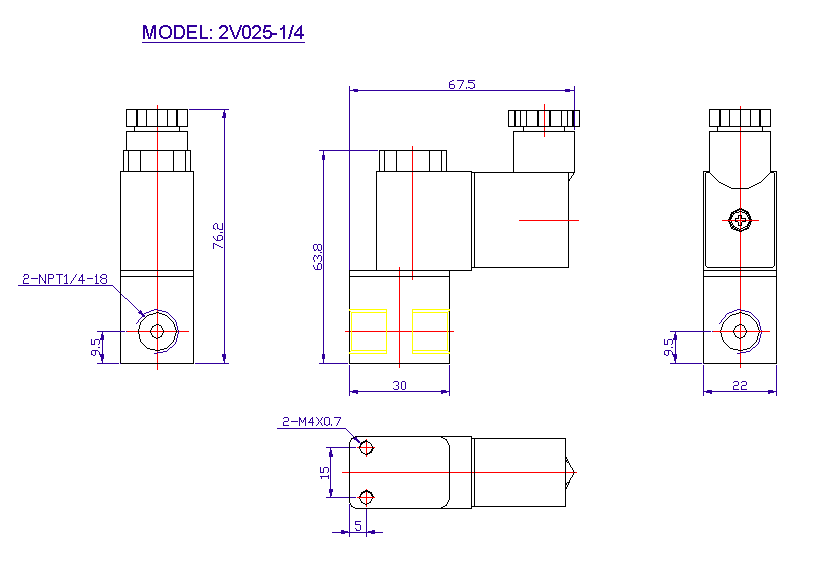

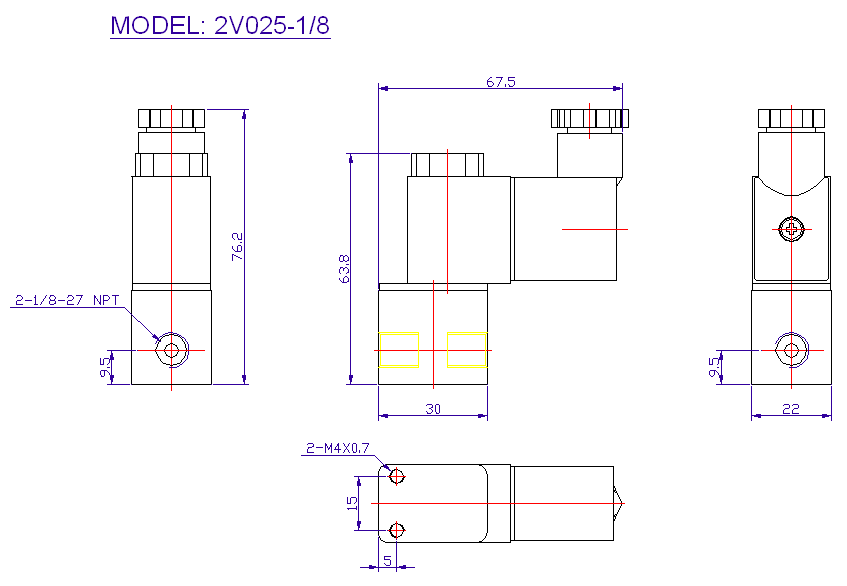

STC Solenoid Valve Dimensions (Units in mm)

Electrical Coil Connections

To Connect a DIN Coil:
- Remove the Philips screw from the plastic housting & unplug from the DIN coil.
- Use the removed screw to push the terminal block out of the plastic DIN housing.
- Note the "1", "2", and ground "⏚" symbols.
  - For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
  - For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.

To Connect a Grommet Coil:
- For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
- For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
- For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
  - GREEN = Ground Wire
  - BLUE = Positive or HOT Wire
  - BROWN = Negative or Neutral Wire
