V3C Valve Specifications
Sanitary Stainless Steel Ball Valve: These valves are made with a precision machined Teflon seat for use in sanitary applications. They utilize a three piece design and have four bolts that permit quick and easy access to service the valve without disrupting the pipe line connections.

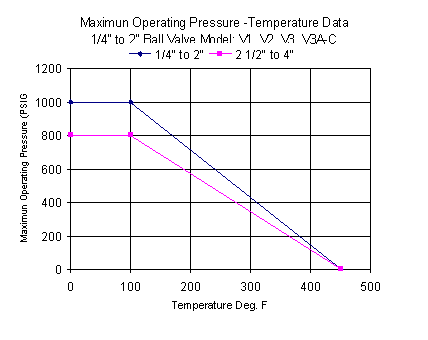

Maximum Operating Pressure: 1/2" to 2" -- 1000PSI @ 100°F WOG                                                          2 1/2" to 4" -- 800PSI @ 100°F WOG
Temperature Range: -60 to 450°F
Full Port
End Connections: Clamp End
Design Standard ASME: B16.34, GB/T12237 Test & Inspection: API1598, JB/T9092
Main Parts & Materials
No.	Part Name	Material	Quantity
1	Seat	PTFE	2
2	Ball	SS316	1
3	Joint Gasket	PTFE	1
4	Cap	SS316	1
5	Body, Body Connector	SS316/CF8M	1, 2
6	Stem	SS316	1
7	Thrust Washer	PTFE	1
8	Stem Packing	PTFE	1
9	Gland Nut	SS304	1
10	Stem Washer	SS304	1
11	Stem Nut	SS304	1
12	Handle Cover	Plastic	1
13	Handle	SS304	1
14	Body Connector Bolt	SS304	4
15	Body Connector Nut & Washer	SS304	4

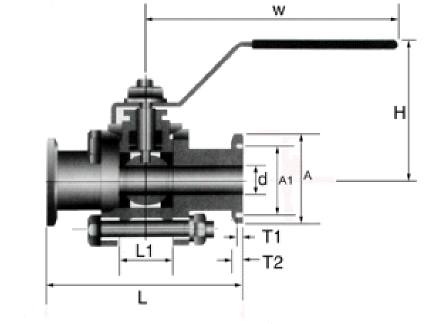

V3C Stainless Steel Ball Valve Dimensions
Size	Port (D)	L	A	A1	H	T1	T2	W
1/2"	9.6	75	25	20.24	64	--	3.63	125
3/4"	15.9	90	25	20.24	67	--	3.63	125
1"	22.2	100	50.4	43.6	83	2.85	4.75	140
1 1/4"	28.5	110	50.4	43.6	89	2.85	4.75	140
1 1/2"	34.9	125	50.4	43.6	100	2.85	--	200
2"	47.5	150	63.9	56.3	108	2.85	--	200
2 1/2"	60.2	190	77.4	70.6	150	2.85	--	250
3"	72.9	220	90	83.3	161	2.85	--	250
4"	97.4	270	118.9	110.3	180	2.85	--	250
