STC Solenoid and Pneumatic Directional Control Valve Specifications
Download CAD Drawings: 4V110-1/8 4V120-1/8 4V130-1/8
| Part No. | Valve Picture | Port Size (NPT) | Voltage | Electrical Connection | Port No / Position / Solenoid | Cv | Response Time | Power Rating |

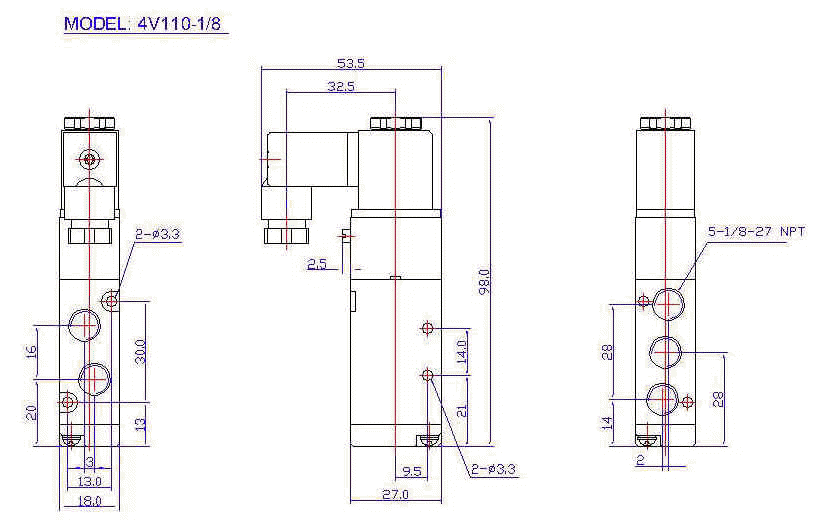

| 4V110-1/8 |
P = Supply Port A, B = Outlet Port EA, EB = Exhaust Port |
1/8" | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED Indicator) |
5/2/1 Four Way Valve |
0.67 25 SCFM @ 100PSI |
<20ms | 2.5W |
| 4V120-1/8 |
P = Supply Port A, B = Outlet Port EA, EB = Exhaust Port |
1/8" | 5/2/2 Four Way Valve Double Solenoid |
0.67 25 SCFM @ 100PSI |
2.5W | |||

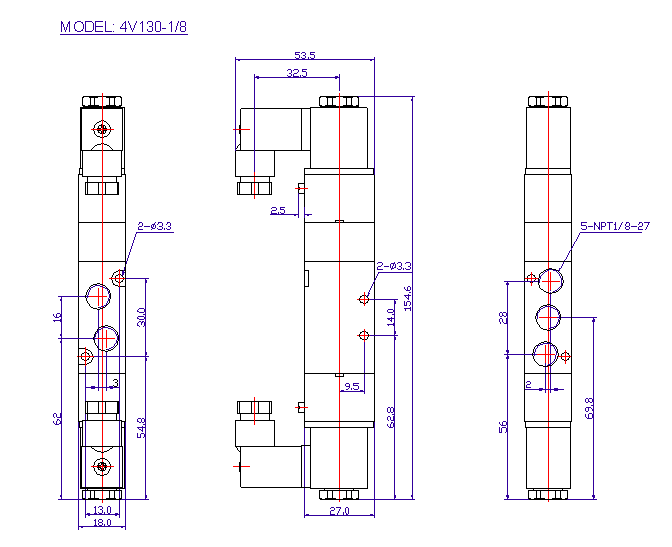

| 4V130-1/8 |
P = Supply Port A, B = Outlet Port EA, EB = Exhaust Port |
1/8" | 5/3/2 Four Way Valve Double Solenoid Three Position, Closed Center |
0.67 25 SCFM @ 100PSI |
2.5W |
