Hand Operated Air Valve Dimensions (Units in mm)

Toggle Air Switch Specifications
Part No. MPV522
Working Medium Air (to be filtered to 40µ filter element)
Port Size (NPT) 1/4"
Effective Cross Section Area 18mm2 (Cv = 1.00)
Working Pressure 0~0.8MPa
Temperature 0~60°C
Panel Hole 15mm

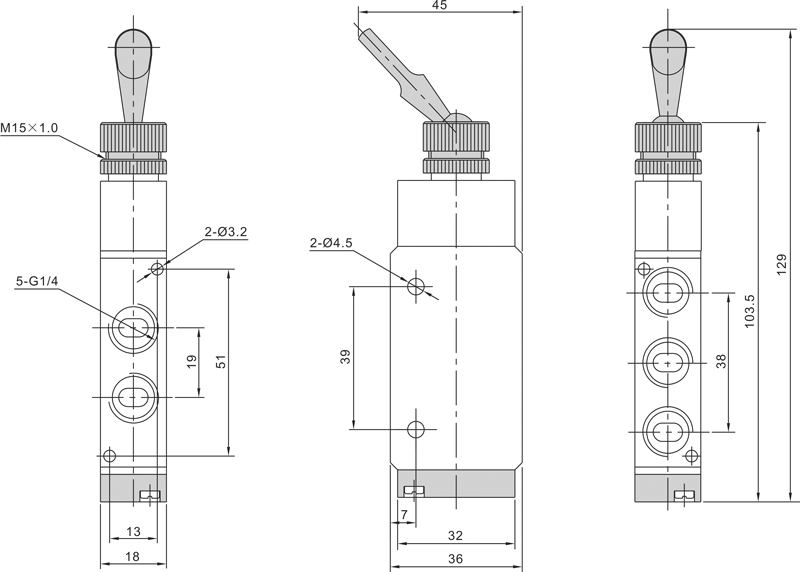

TOGGLE AIR VALVE DIMENSIONS
