Model BUS: Bulkhead Union Stainless Steel Push In Fittings
Download CAD File: BUS

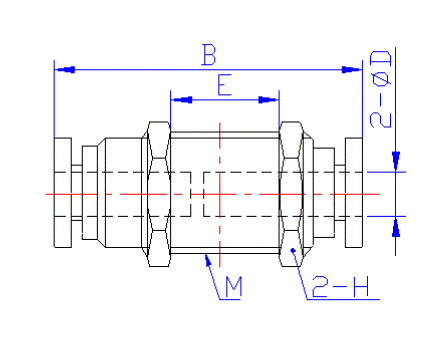

Stainless Steel Fitting Dimensions |
||||
 |
||||
| Model | Bulkhead Union | |||
| BUS | ||||
| ФD | Part No. | B | H | M |
| 1/8" | BUS 1/8 W | 34.5 | S14 | M12X1 |
| 5/32" | BUS 5/32 W | 35.1 | S14 | M12X1 |
| 3/16" | BUS 3/16 W | 38.05 | S17 | M14X1 |
| 1/4" | BUS 1/4 W | 38.05 | S17 | M14X1 |
| 5/16" | BUS 5/16 W | 42.7 | S19 | M17X1 |
| 3/8" | BUS 3/8 W | 48.4 | S21 | M19X1 |
| 1/2" | BUS 1/2 W | 52.5 | S24 | M22X1 |
| 4 | BUS 4 W | 35.1 | S14 | M12X1 |
| 6 | BUS 6 W | 38.05 | S17 | M14X1 |
| 8 | BUS 8 W | 42.7 | S19 | M17X1 |
| 10 | BUS 10 W | 48.4 | S21 | M19X1 |
| 12 | BUS 12 W | 52.5 | S24 | M22X1 |
| Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O. | ||||
